SKU: 6202NR-MB

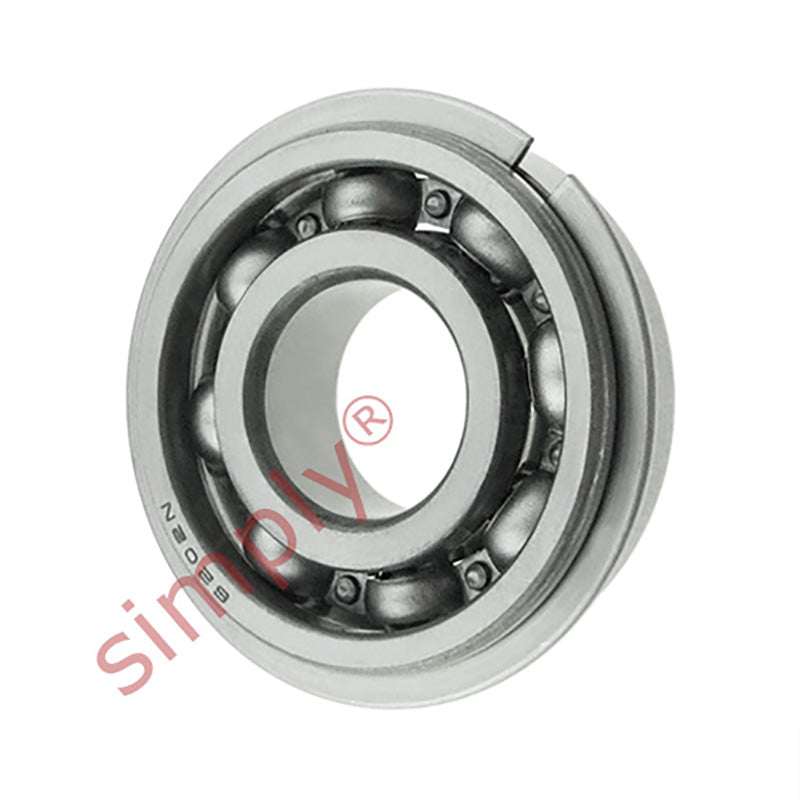

6202NR Deep Groove Ball Bearing with Snap Ring 15x35x11mm
6202NR Deep Groove Ball Bearing with Snap Ring 15x35x11mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
10+
CHF 9.48
19+
CHF 8.95
29+
CHF 8.84
39+
CHF 8.73
49+
CHF 8.63
74+
CHF 8.52
99+
CHF 7.99
199+
CHF 7.88
249+
CHF 7.77
499+
CHF 7.67
999+
CHF 7.45
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dyamic load C | 8.06 kN |
| Static load Co | 3.75 kN |
| Fatigue load limit Pu | 0.16 kN |
| Reference speed | 43000 rpm |
| Limiting speed | 28000 rpm |
| Mass | 0.045 kg |
| d1 | 21.7mm |
| d2 | 29mm |
| D2 | 30.4mm |
| r1r2 min | 0.6mm |
| da min | 19.2 |
