SKU: 6203-2NSE/NR-NACHI

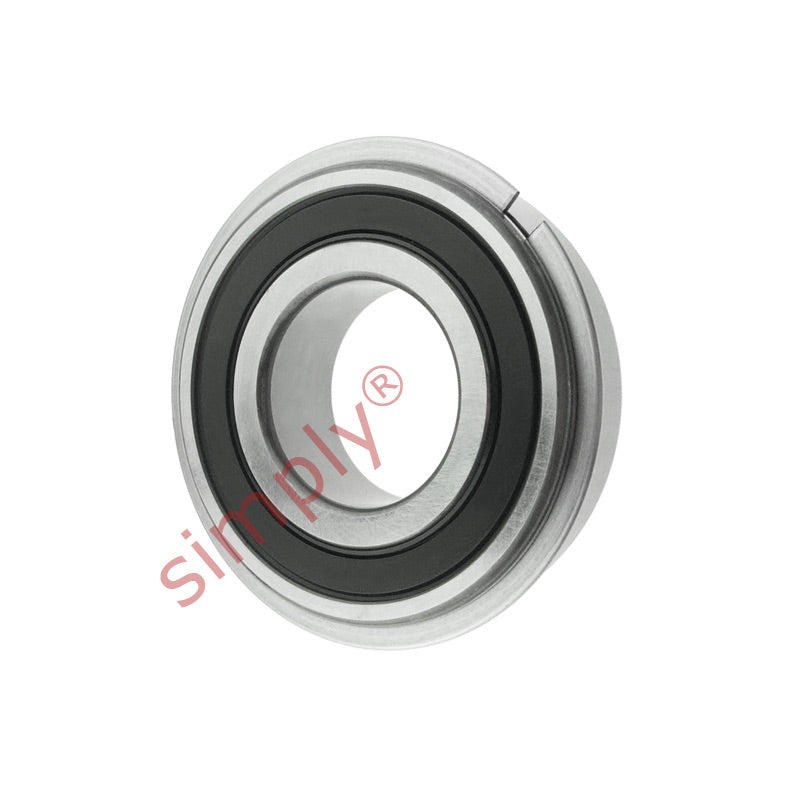

NACHI 62032NSENR Contact Rubber Sealed Deep Groove Ball Bearing with Snap Ring 17x40x12mm
NACHI 62032NSENR Contact Rubber Sealed Deep Groove Ball Bearing with Snap Ring 17x40x12mm
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
Equivalent to: 6203NSENR 6203RSNR 62032RSNR 62032RSHNR 6203RSRNR
In stock
Price Break
5+
CHF 13.18
9+
CHF 12.44
19+
CHF 12.29
29+
CHF 12.14
49+
CHF 11.99
74+
CHF 11.85
99+
CHF 11.11
199+
CHF 10.96
249+
CHF 10.81
499+
CHF 10.66
999+
CHF 10.37
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6203NSENR 6203RSNR 62032RSNR 62032RSHNR 6203RSRNR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 40mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9550 kN |
| Static load | 4800 kN |
| Max speed | 18000 rpm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.6mm |
| Weight | 0.065 kg |
