SKU: 6203-2Z-KOY

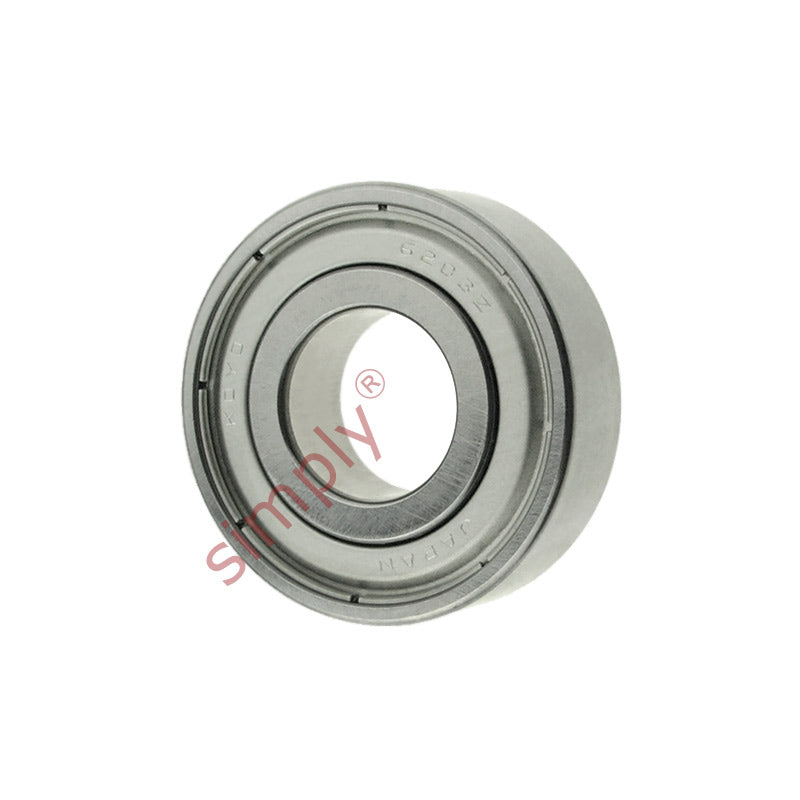

KOYO 62032Z Metal Shielded Deep Groove Ball Bearing 17x40x12mm
Equivalent to: 6203ZZE 62032Z 6203.2Z 6203KDD 6203DD 62032ZR 6203FF 6203Z
In stock
Price Break
Couldn't load pickup availability
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6203ZZE 62032Z 6203.2Z 6203KDD 6203DD 62032ZR 6203FF 6203Z
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 40mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9.55 kN |
| Static load | 4.8 kN |
| Max speed in oil | 21000 rpm |
| Max speed in grease | 12000 rpm |
