SKU: 6203-NTN

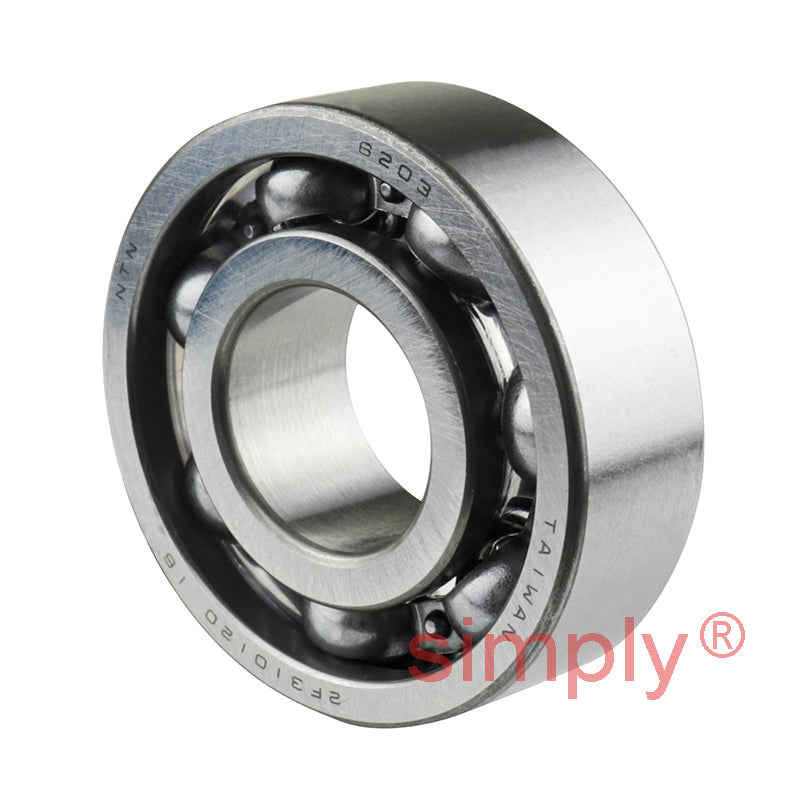

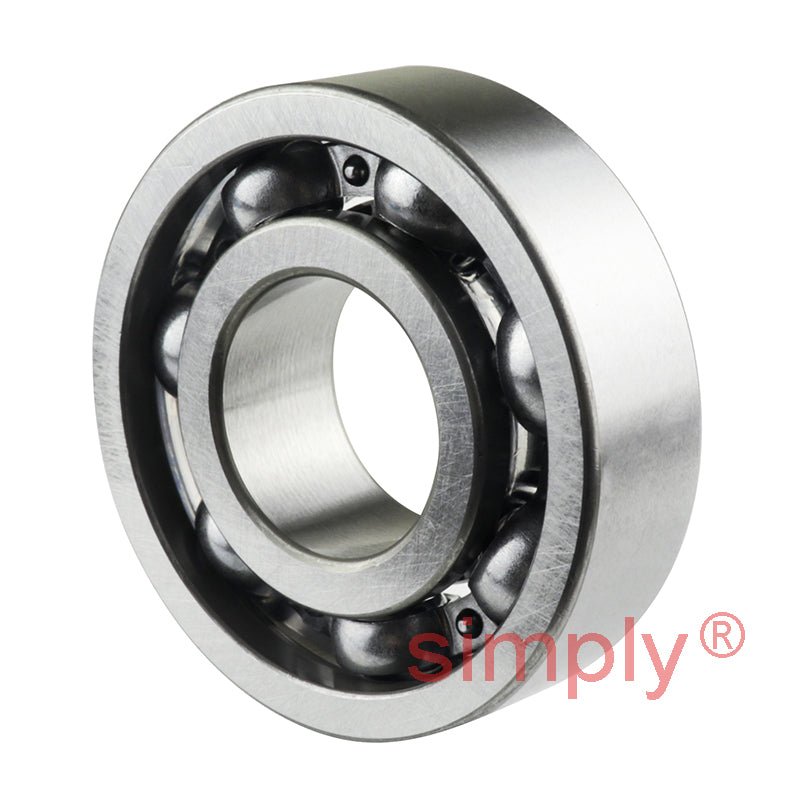

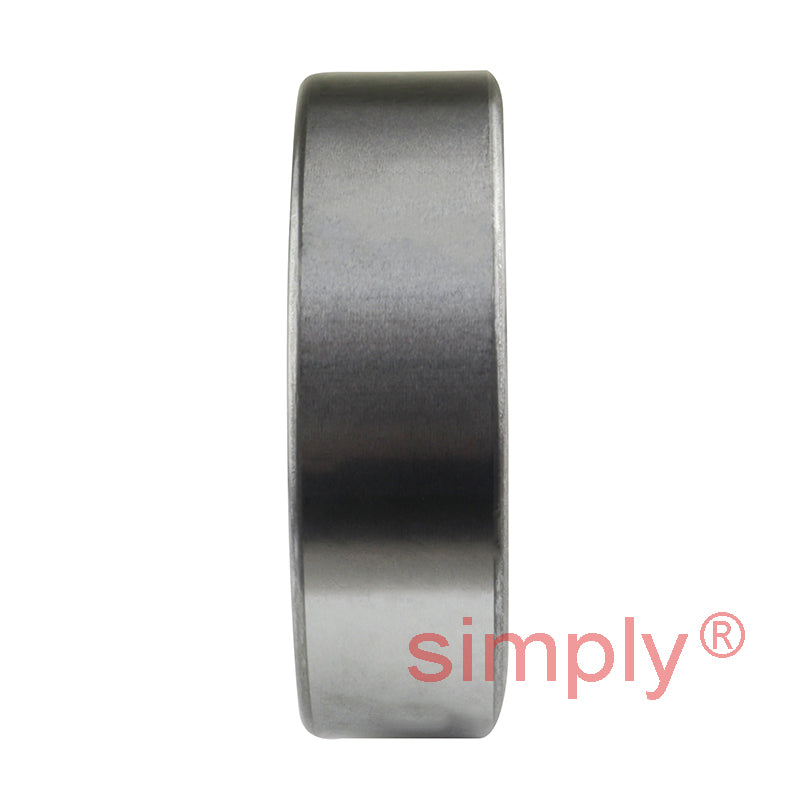

NTN 6203 Open Type Deep Groove Ball Bearing 17x40x12mm
NTN 6203 Open Type Deep Groove Ball Bearing 17x40x12mm
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: 6203CM 203K 1203 203S 6203 3203 01A
In stock
Price Break
3+
CHF 4.65
5+
CHF 4.38
10+
CHF 4.33
25+
CHF 4.28
49+
CHF 4.23
74+
CHF 4.18
99+
CHF 3.92
199+
CHF 3.86
249+
CHF 3.81
499+
CHF 3.76
999+
CHF 3.65
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6203CM 203K 1203 203S 6203 3203 01A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 40mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.6 kN |
| C<sub>or</sub> | 4.6 kN |
| C<sub>u</sub> | 0.355 kN |
| f<sub>0</sub> | 12.8 kN |
| Grease | 18000 rpm |
| Oil | 21000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 21mm |
| D<sub>a</sub> Max. | 36mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.066 kg |
