SKU: 6203-ZZE-NACHI

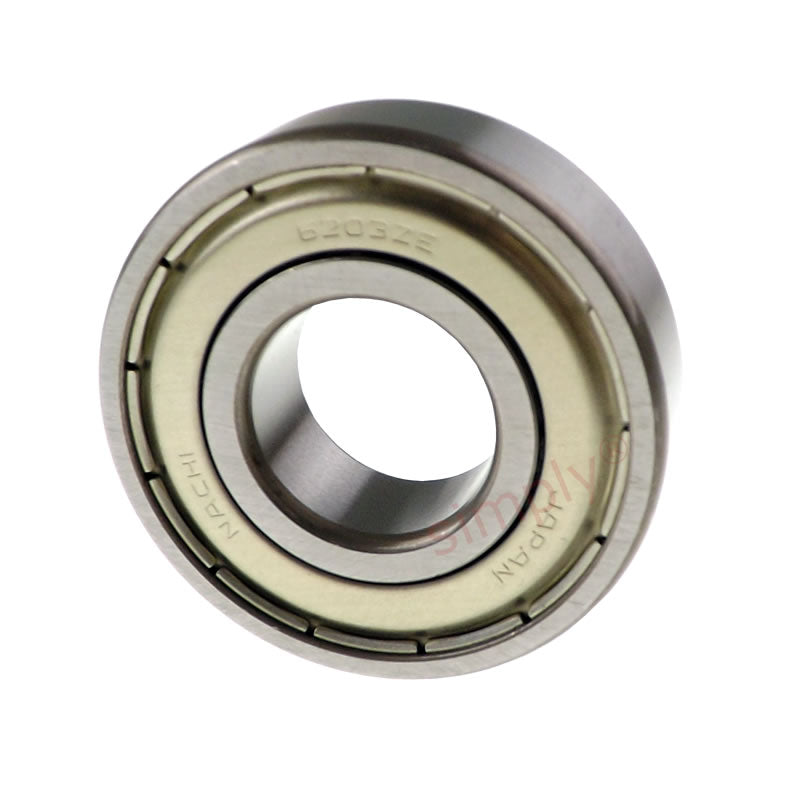

NACHI 6203ZZE Metal Shielded Deep Groove Ball Bearing 17x40x12mm
NACHI 6203ZZE Metal Shielded Deep Groove Ball Bearing 17x40x12mm
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: 6203ZZ 62032Z 6203.2Z 6203KDD 6203DD 62032ZR 6203FF
In stock
Price Break
5+
CHF 4.64
9+
CHF 4.38
19+
CHF 4.33
29+
CHF 4.28
49+
CHF 4.23
74+
CHF 4.17
99+
CHF 3.91
199+
CHF 3.86
249+
CHF 3.81
499+
CHF 3.76
999+
CHF 3.65
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6203ZZ 62032Z 6203.2Z 6203KDD 6203DD 62032ZR 6203FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 40mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9550 kN |
| Static load | 4800 kN |
| Max speed | 18000 rpm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.6mm |
| Weight | 0.065 kg |
