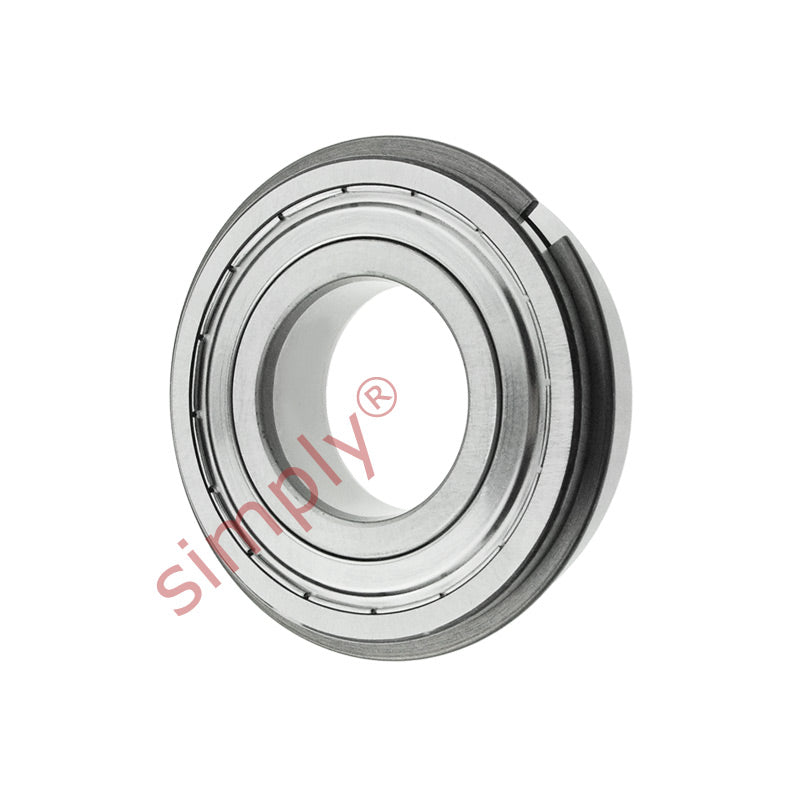

NSK 6203ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 17x40x12mm
NSK 6203ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 17x40x12mm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: 62032ZNR
In stock
Price Break
4+
CHF 7.97
10+
CHF 7.52
20+
CHF 7.43
30+
CHF 7.34
50+
CHF 7.25
75+
CHF 7.16
100+
CHF 6.72
200+
CHF 6.63
250+
CHF 6.54
500+
CHF 6.45
1000+
CHF 6.27
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 62032ZNR
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 9550 N (975 kgf) |
| Static load Cor | 4800 N (490 kgf) |
| Factor | 13.2 |
| Speed in grease | 17000 rpm |
| Speed in oil | 20000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 38.1mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 44.6mm |
| f max | 1.12mm |
| da2 min | 21mm |
| da2max | 23.5mm |
| Da2max | 36mm |
| ra max | 0.6mm |
| Dx min | 45.5mm |
| Cy max | 2.9mm |
| Weight | 0.067 kg |
