SKU: 6204-HT-330

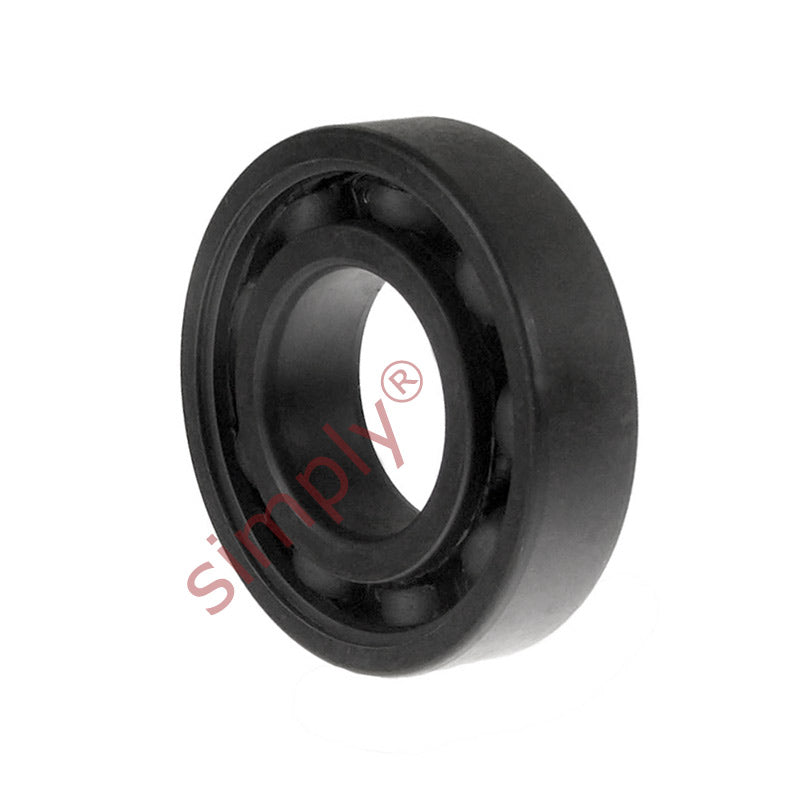

6204HT330 High Temp 330C Open Deep Groove Ball Bearing 20x47x14mm Max 170rpm
6204HT330 High Temp 330C Open Deep Groove Ball Bearing 20x47x14mm Max 170rpm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: 6204VA201 6204VA208 6204VA228
In stock
Price Break
3+
CHF 6.91
5+
CHF 6.52
10+
CHF 6.44
15+
CHF 6.36
20+
CHF 6.29
30+
CHF 6.21
40+
CHF 5.82
50+
CHF 5.74
60+
CHF 5.66
75+
CHF 5.59
100+
CHF 5.43
Share this product
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6204VA201 6204VA208 6204VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 20mm |
|---|---|
| Outside diameter D | 47mm |
| Width W | 14mm |
| Static load max | 3.79 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 170 rpm |
| Weight | 110 g |
