SKU: 6204-NTN

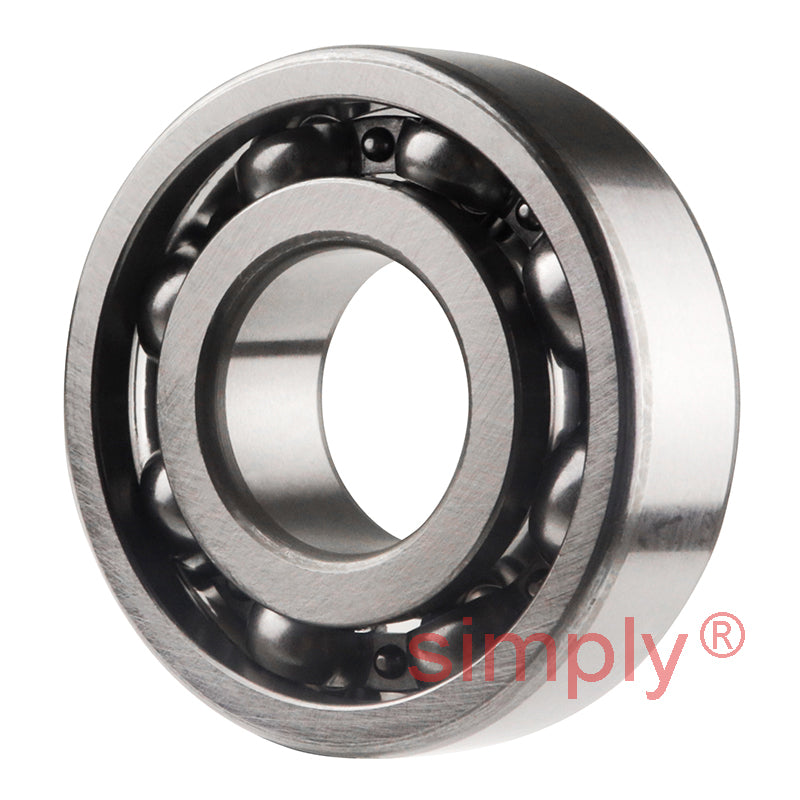

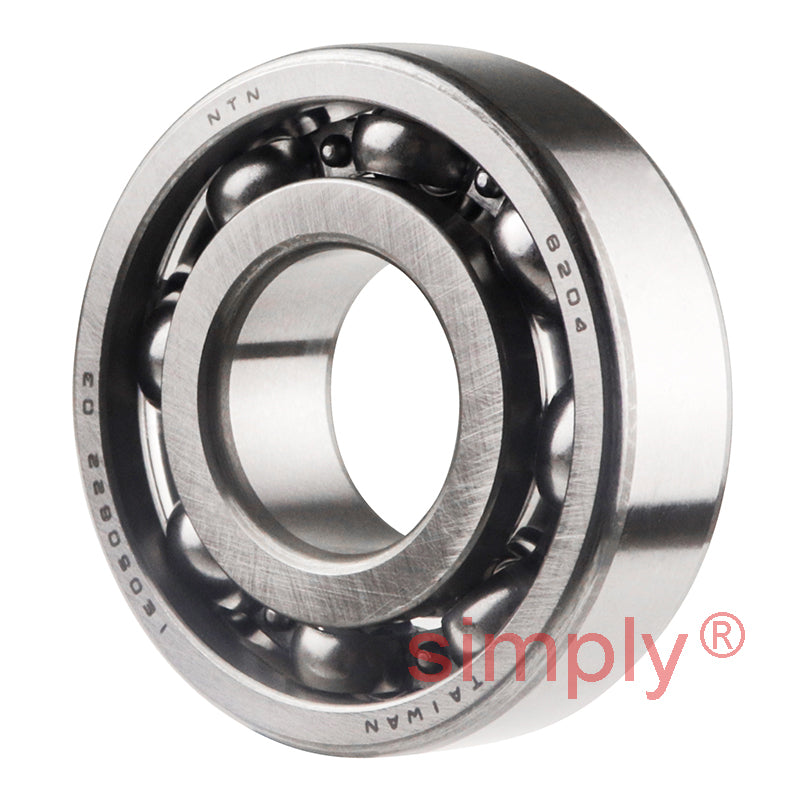

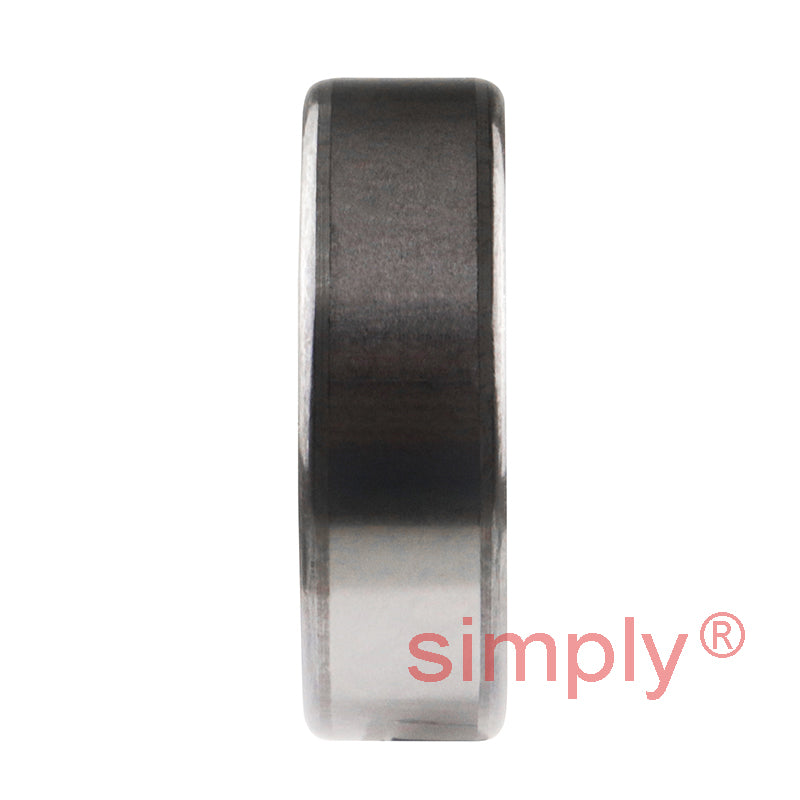

NTN 6204 Open Type Deep Groove Ball Bearing 20x47x14mm

NTN 6204 Open Type Deep Groove Ball Bearing 20x47x14mm
CHF 7.00 ex VAT
CHF 7.00 ex VAT
Sale Sold out

Equivalent to: 6204CM 204K 1204 204S 6204 3204 1A20

In stock

Price Break
3+ CHF 5.46
5+ CHF 5.15
10+ CHF 5.09
25+ CHF 5.03
49+ CHF 4.97
74+ CHF 4.90
99+ CHF 4.60
199+ CHF 4.54
249+ CHF 4.47
499+ CHF 4.41
999+ CHF 4.29
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.


Equivalent: 6204CM 204K 1204 204S 6204 3204 1A20
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
47mm
Width:
14mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 20mm
D 47mm
B 14mm
r<sub>s</sub> min 1mm
--- Loads angles and speeds
C<sub>r</sub> 14.2 kN
C<sub>or</sub> 6.65 kN
C<sub>u</sub> 0.505 kN
f<sub>0</sub> 13.2 kN
Grease 16000 rpm
Oil 18000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 25mm
D<sub>a</sub> Max. 42mm
r<sub>as</sub> Max. 1mm
Weight 0.106 kg
