SKU: 6204-ZZE-NACHI

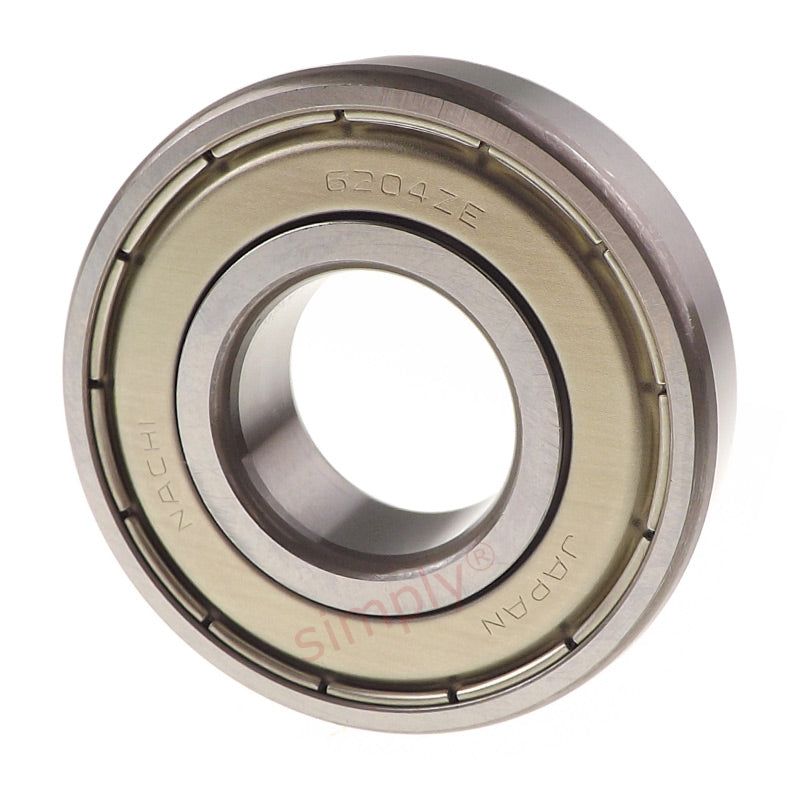

NACHI 6204ZZE Metal Shielded Deep Groove Ball Bearing 20x47x14mm
NACHI 6204ZZE Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Regular price
CHF 6.85
ex VAT
Regular price
Sale price
CHF 6.85
ex VAT
Equivalent to: 6204ZZ 62042Z 6204.2Z 6204KDD 6204DD 62042ZR 6204FF
In stock
Price Break
10+
CHF 6.10
19+
CHF 5.75
29+
CHF 5.69
39+
CHF 5.62
49+
CHF 5.55
74+
CHF 5.48
99+
CHF 5.14
199+
CHF 5.07
249+
CHF 5.00
499+
CHF 4.93
999+
CHF 4.80
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6204ZZ 62042Z 6204.2Z 6204KDD 6204DD 62042ZR 6204FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 20mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 14mm |
| Min radius r | 1mm |
| Dynamic load | 12800 kN |
| Static load | 6600 kN |
| Max speed | 16000 rpm |
| da min | 26mm |
| Da max | 41mm |
| ra max | 1mm |
| Weight | 0.106 kg |
