SKU: 6204ETN9-SKF

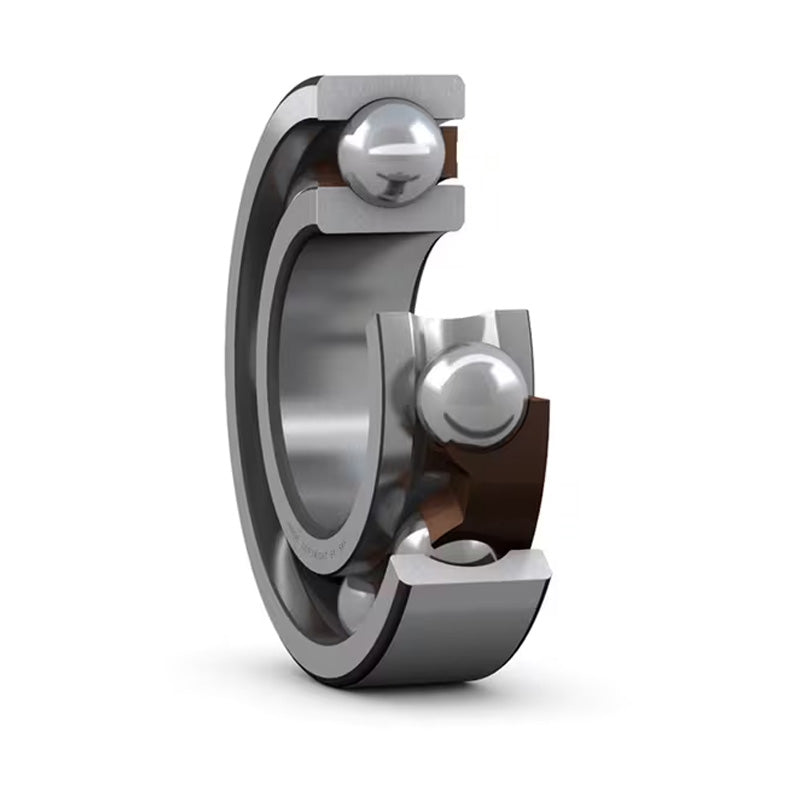

SKF 6204ETN9 Open Deep Groove Ball Bearing with Fibre Cage 20x47x14mm
SKF 6204ETN9 Open Deep Groove Ball Bearing with Fibre Cage 20x47x14mm
Regular price
CHF 21.00
ex VAT
Regular price
Sale price
CHF 21.00
ex VAT
In stock
Price Break
4+
CHF 16.16
10+
CHF 15.25
20+
CHF 15.07
30+
CHF 14.89
50+
CHF 14.71
75+
CHF 14.53
100+
CHF 13.62
200+
CHF 13.44
250+
CHF 13.26
500+
CHF 13.08
1000+
CHF 12.71
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load | 15.6 kN |
| Static load | 7.65 kN |
| Fatigue load limit Pu | 0.325 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Weight | 0.096 kg |
| d1 | 28.2mm |
| D1 | 39.6mm |
| D2 | n/amm |
| r1r2 min | 1mm |
| da min | 25.6mm |
| Da max | 41.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 12 |
