SKU: 6205-HT-330
6205HT330 High Temp 330C Open Deep Groove Ball Bearing 25x52x15mm Max 160rpm
6205HT330 High Temp 330C Open Deep Groove Ball Bearing 25x52x15mm Max 160rpm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: 6205VA201 6205VA208 6205VA228
In stock
Price Break
3+
CHF 8.11
5+
CHF 7.65
10+
CHF 7.56
15+
CHF 7.47
20+
CHF 7.38
30+
CHF 7.29
40+
CHF 6.83
50+
CHF 6.74
60+
CHF 6.65
75+
CHF 6.56
100+
CHF 6.38
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6205VA201 6205VA208 6205VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Temperature Range:
- High Temp

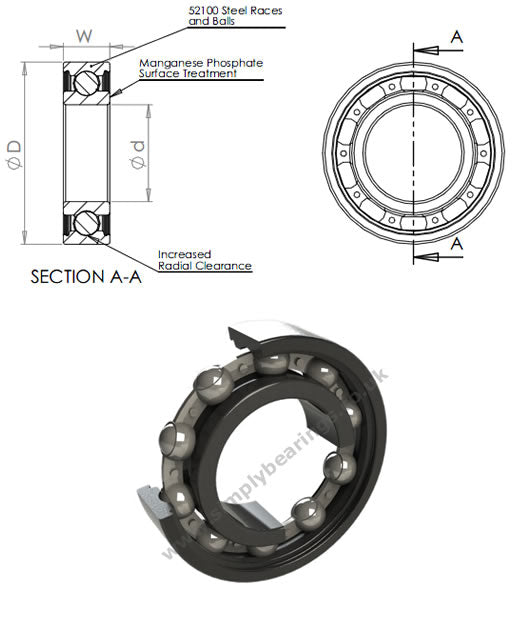

Technical
Technical
| Inside diameter d | 25mm |
|---|---|
| Outside diameter D | 52mm |
| Width W | 15mm |
| Static load max | 4.62 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 160 rpm |
| Weight | 130 g |
