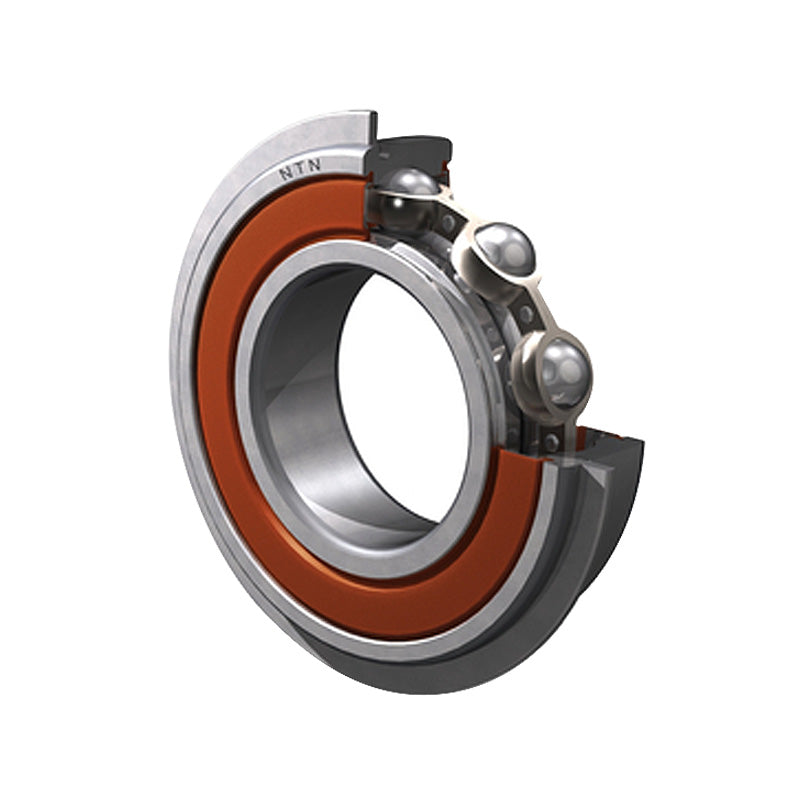

NTN 6205LLUNRC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 25x52x15mm

Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.

Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6205NSENRC3 6205DUNRC3 6205RSNRC3 6205RSHNRC3 6205PNRC3 6205RSRNRC3 6205LUNRC3 62052NSENRC3 6205DDUNRC3 62052RSNRC3 6205-2RSNRC3 62052RS1NRC3 62052RSHNRC3 6205PPNRC3 62052RSRNRC3 6205LLUNRC3 6205RS2NRC3 62052RS2NRC3 62052RSLNRC3 6205LFSNRC3 6205EENRC3 Z49505C3 205SZGC3

Brand / Quality:

NTN - High Quality

Inside Diameter:

25mm

Outside Diameter:

52mm

Width:

15mm

Seals / Shields:

Rubber Sealed

Clearance:

C3

Snap Ring:

Snap Ring
