SKU: 6205NR-SKF

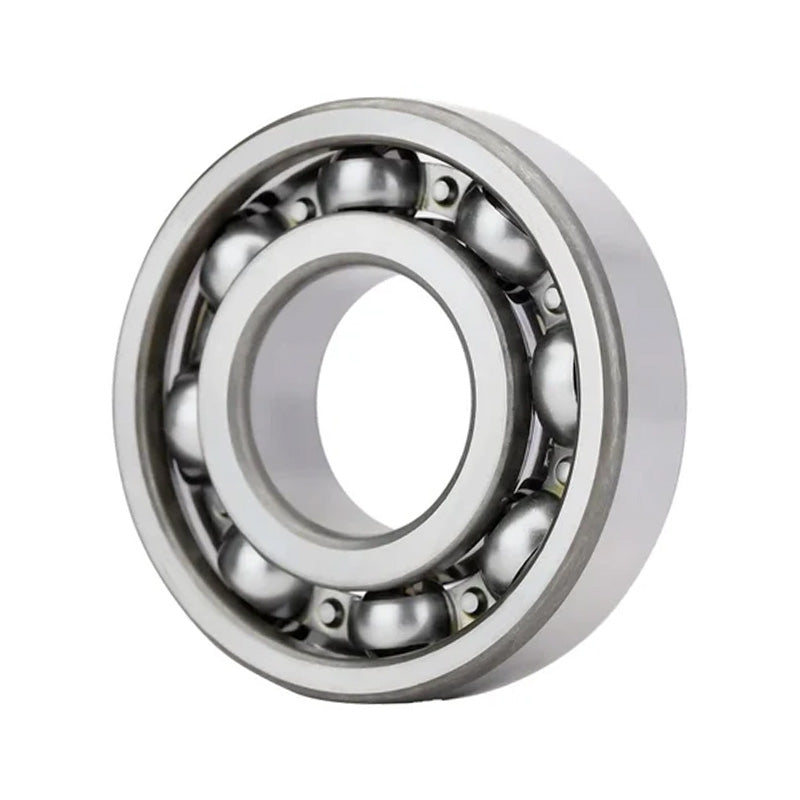

SKF 6205NR Open Type Snap Ring Deep Groove Bearing 25x52x15mm
SKF 6205NR Open Type Snap Ring Deep Groove Bearing 25x52x15mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
4+
CHF 8.83
10+
CHF 8.33
20+
CHF 8.23
30+
CHF 8.13
50+
CHF 8.04
75+
CHF 7.94
100+
CHF 7.44
200+
CHF 7.34
250+
CHF 7.24
500+
CHF 7.14
1000+
CHF 6.94
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 14.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 335 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 18000 rpm |
| Weight | 0.13kg |
| Snap ring | SP 52 |
| d1 | 34.3mm |
| D2 | 46.3mm |
| D3 | 49.73mm |
| D4 | 57.9mm |
| b | 1.35mm |
| f | 1.12mm |
| C | 2.46mm |
| r1r2 min | 1mm |
| ro max | 0.4mm |
| da min | 30.6mm |
| Da max | 46.4mm |
| Db min | 59mm |
| ba min | 1.5mm |
| Ca max | 3.58mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 14 |
