SKU: 6206-2Z-HT-330
6206ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 30x62x16mm Max 120rpm
6206ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 30x62x16mm Max 120rpm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: 62062ZVA201 62062ZVA208 62062ZVA228
In stock
Price Break
3+
CHF 8.11
5+
CHF 7.65
10+
CHF 7.56
15+
CHF 7.47
20+
CHF 7.38
30+
CHF 7.29
40+
CHF 6.83
50+
CHF 6.74
60+
CHF 6.65
75+
CHF 6.56
100+
CHF 6.38
Description
Description

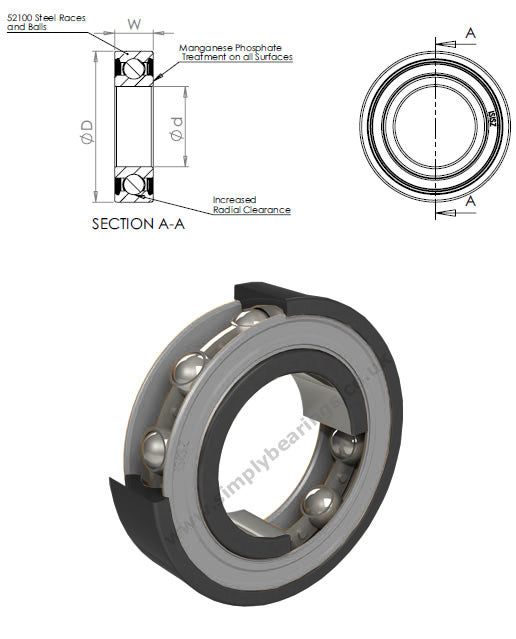

HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 62062ZVA201 62062ZVA208 62062ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 30mm |
|---|---|
| Outside diameter D | 62mm |
| Width W | 16mm |
| Static load max | 6.48 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 120 rpm |
| Weight | 200 g |
