SKU: 6206-NTN

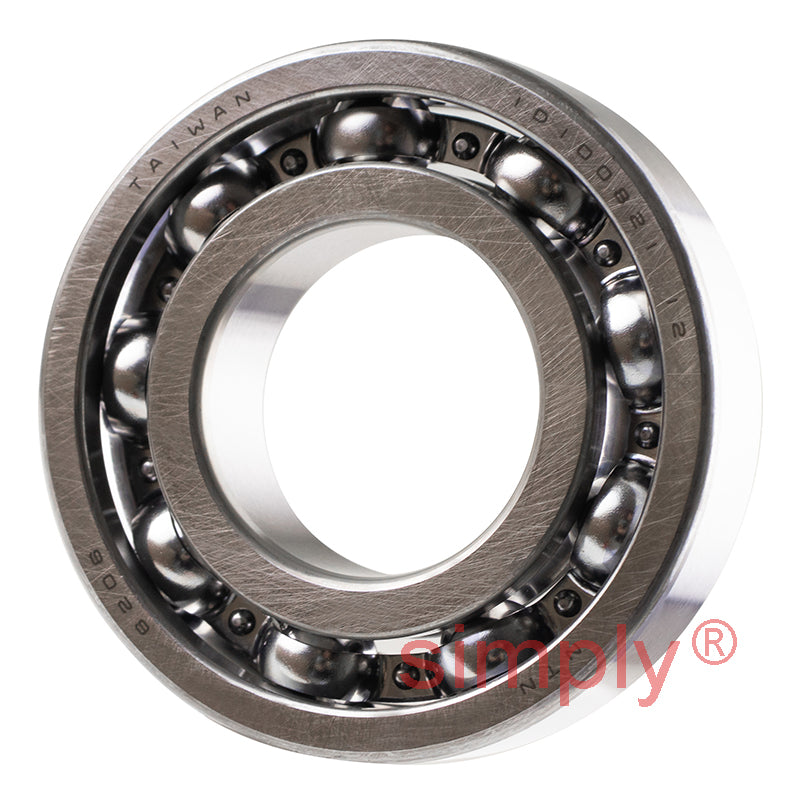

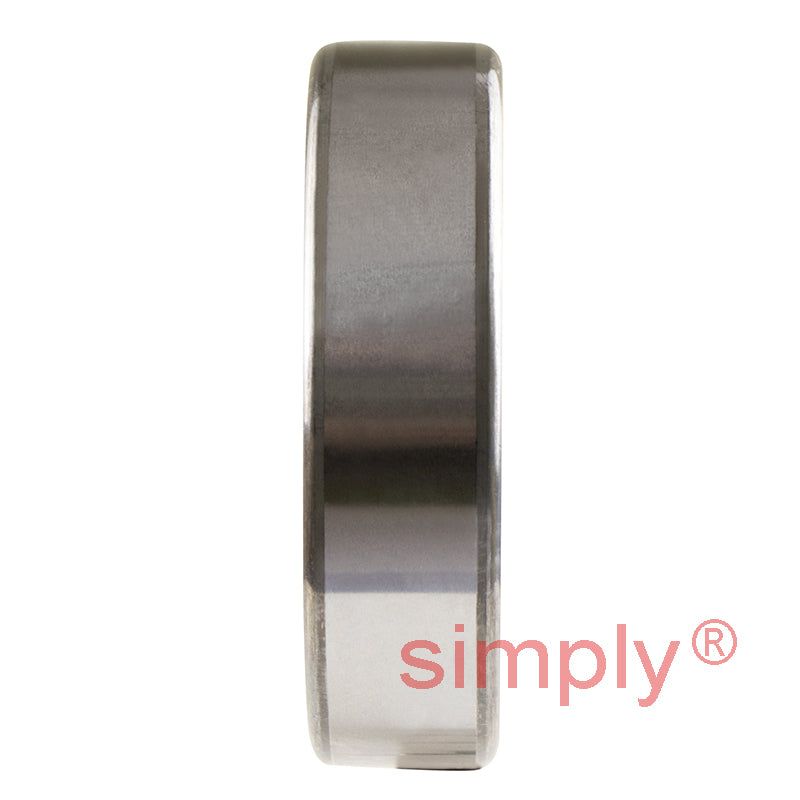

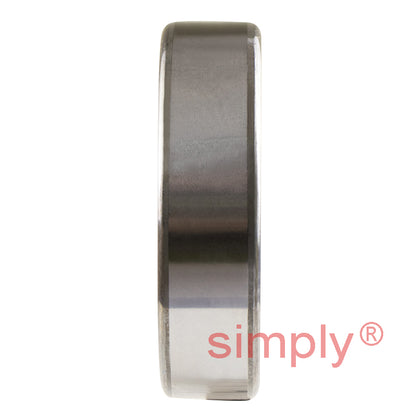

NTN 6206 Open Type Deep Groove Ball Bearing 30x62x16mm
NTN 6206 Open Type Deep Groove Ball Bearing 30x62x16mm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
Equivalent to: 6206CM 206K 1206 206S 6206 3206 3A30
In stock
Price Break
3+
CHF 8.52
5+
CHF 8.04
10+
CHF 7.94
25+
CHF 7.85
49+
CHF 7.75
74+
CHF 7.66
99+
CHF 7.18
199+
CHF 7.08
249+
CHF 6.99
499+
CHF 6.89
999+
CHF 6.70
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6206CM 206K 1206 206S 6206 3206 3A30
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 62mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 21.6 kN |
| C<sub>or</sub> | 11.3 kN |
| C<sub>u</sub> | 0.795 kN |
| f<sub>0</sub> | 13.8 kN |
| Grease | 11000 rpm |
| Oil | 13000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 35mm |
| D<sub>a</sub> Max. | 57mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.199 kg |
