SKU: 6206LLBC3/5K-NTN

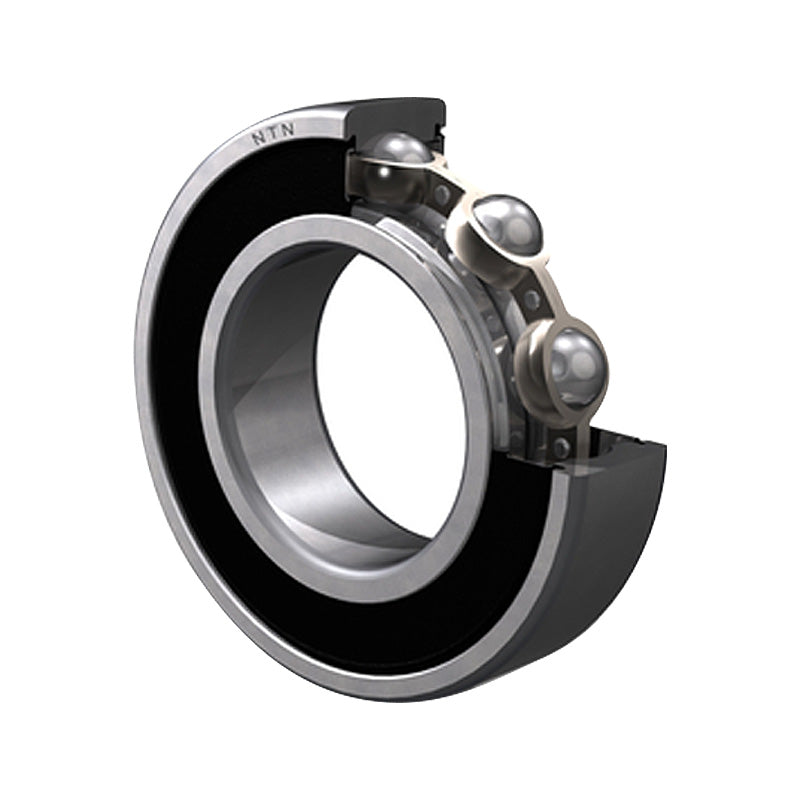

NTN 6206LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 30x62x16mm
NTN 6206LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 30x62x16mm
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
Equivalent to: 62062NKEC3 6206VVC3 62062RSLC3 62062RZC3
In stock
Price Break
3+
CHF 17.65
5+
CHF 16.66
10+
CHF 16.46
25+
CHF 16.26
49+
CHF 16.06
74+
CHF 15.86
99+
CHF 14.87
199+
CHF 14.67
249+
CHF 14.48
499+
CHF 14.28
999+
CHF 13.88
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 62062NKEC3 6206VVC3 62062RSLC3 62062RZC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 62mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 21.6 kN |
| C<sub>or</sub> | 11.3 kN |
| C<sub>u</sub> | 0.795 kN |
| f<sub>0</sub> | 13.8 kN |
| Grease | 11000 rpm |
| Oil | 13000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 35mm |
| d<sub>a</sub> Max. | 39mm |
| D<sub>a</sub> Max. | 57mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.199 kg |
