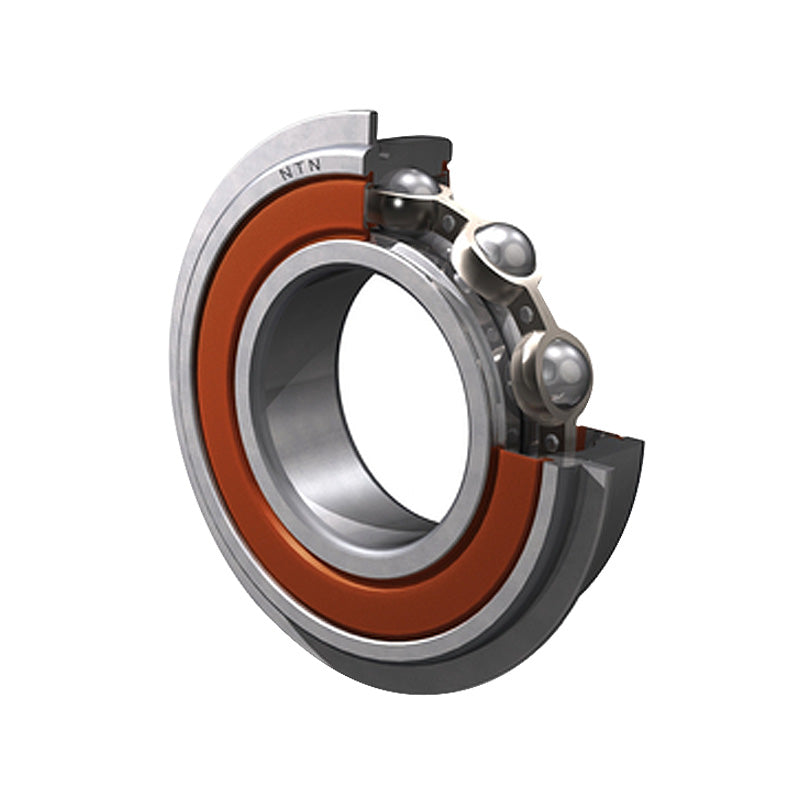

NTN 6206LLUNRC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 30x62x16mm

Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.

Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6206NSENRC3 6206DUNRC3 6206RSNRC3 6206RSHNRC3 6206PNRC3 6206RSRNRC3 6206LUNRC3 62062NSENRC3 6206DDUNRC3 62062RSNRC3 6206-2RSNRC3 62062RS1NRC3 62062RSHNRC3 6206PPNRC3 62062RSRNRC3 6206LLUNRC3 6206RS2NRC3 62062RS2NRC3 62062RSLNRC3 6206LFSNRC3 6206EENRC3 Z49506C3 206SZGC3

Brand / Quality:

NTN - High Quality

Inside Diameter:

30mm

Outside Diameter:

62mm

Width:

16mm

Seals / Shields:

Rubber Sealed

Clearance:

C3

Snap Ring:

Snap Ring
