SKU: 6207LLBC3/5K-NTN

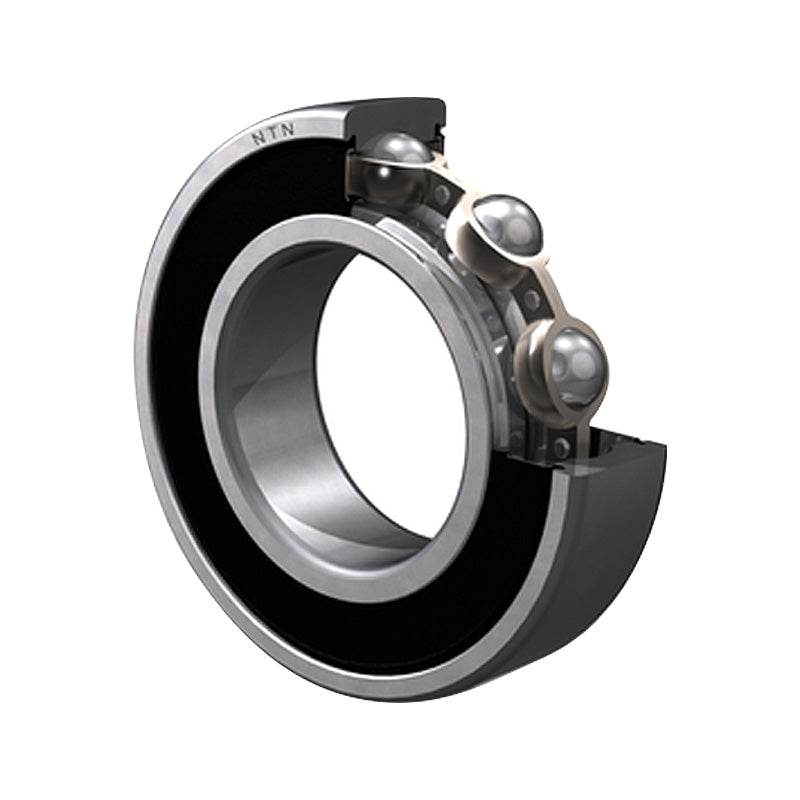

NTN 6207LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 35x72x17mm
NTN 6207LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 35x72x17mm
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
Equivalent to: 62072NKEC3 6207VVC3 62072RSLC3 62072RZC3
In stock
Price Break
3+
CHF 11.82
5+
CHF 11.16
10+
CHF 11.02
25+
CHF 10.89
49+
CHF 10.76
74+
CHF 10.62
99+
CHF 9.96
199+
CHF 9.83
249+
CHF 9.69
499+
CHF 9.56
999+
CHF 9.30
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 62072NKEC3 6207VVC3 62072RSLC3 62072RZC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 72mm |
| B | 17mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 28.4 kN |
| C<sub>or</sub> | 15.3 kN |
| C<sub>u</sub> | 1.09 kN |
| f<sub>0</sub> | 13.8 kN |
| Grease | 9800 rpm |
| Oil | 11000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 41.5mm |
| d<sub>a</sub> Max. | 45mm |
| D<sub>a</sub> Max. | 65.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.288 kg |
