SKU: 6208LLUK/2AS-NTN

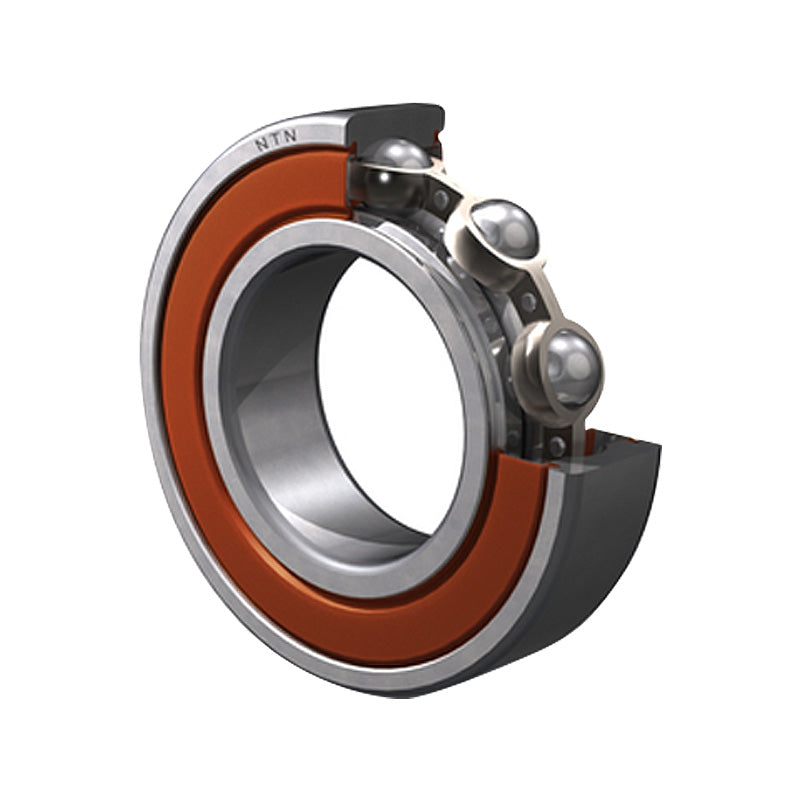

NTN 6208LLUK/2AS Tapered Bore Contact Rubber Sealed Type Deep Groove Ball Bearing 40x80x18mm
NTN 6208LLUK/2AS Tapered Bore Contact Rubber Sealed Type Deep Groove Ball Bearing 40x80x18mm
Regular price
CHF 28.40
ex VAT
Regular price
Sale price
CHF 28.40
ex VAT
In stock
Price Break
10+
CHF 25.28
19+
CHF 23.86
29+
CHF 23.57
39+
CHF 23.29
49+
CHF 23.00
74+
CHF 22.72
99+
CHF 21.30
199+
CHF 21.02
249+
CHF 20.73
499+
CHF 20.45
999+
CHF 19.88
Couldn't load pickup availability
Description
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 80mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 32.5 Kn |
| C<sub>or</sub> | 17.8 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 14 kN |
| Grease | 5600 rpm |
| Oil | 46.5 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 51mm |
| D<sub>a</sub> Max. | 73.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.366 kg |
