SKU: 6208LLUNR/2AS-NTN

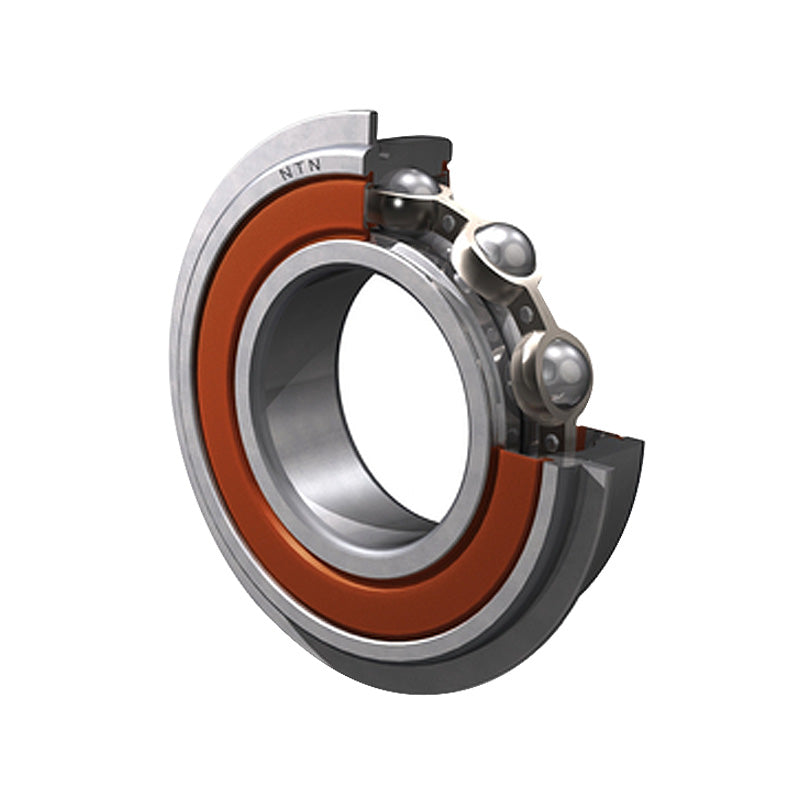

NTN 6208LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 40x80x18mm
Equivalent to: 6208LLUNRCM 6208LLUNR 6208NSENR 6208DUNR 6208RSNR 6208RSHNR 6208PNR 6208RSRNR 6208LUNR 62082NSENR 6208DDUNR 62082RSNR 6208-2RSNR 62082RS1NR 62082RSHNR 6208PPNR 62082RSRNR 6208LLUNR 6208RS2NR 62082RS2NR 62082RSLNR 6208LFSNR 6208EENR Z49508 208SZG
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 80mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 32.5 kN |
| C<sub>or</sub> | 17.8 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 14 |
| --- | Fitting Dimensions |
| Speed | 5600rpm |
| D<sub>1</sub> Max. | 76.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
