SKU: 6209-2RS/C3-EMQ-CDX

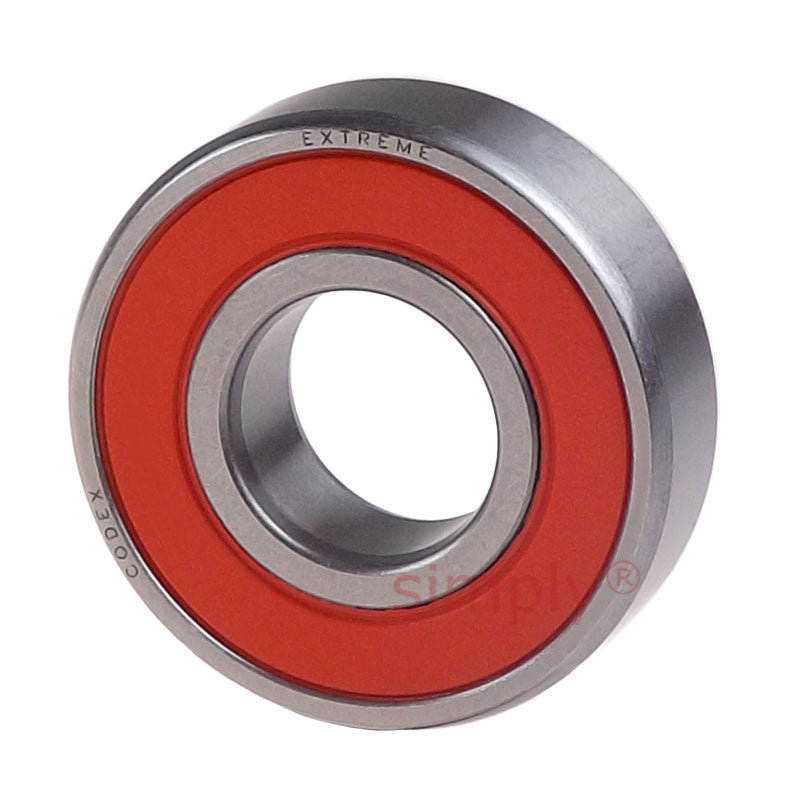

Codex 62092RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
Codex 62092RSC3 Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearing 45x85x19mm
Regular price
CHF 22.00
ex VAT
Regular price
Sale price
CHF 22.00
ex VAT
Equivalent to: 6209-2RS/C3
In stock
Price Break
4+
CHF 16.78
10+
CHF 15.83
20+
CHF 15.65
30+
CHF 15.46
50+
CHF 15.27
75+
CHF 15.08
100+
CHF 14.14
200+
CHF 13.95
250+
CHF 13.76
500+
CHF 13.57
1000+
CHF 13.19
Share this product
Description
Description
|
Extreme Electric Motor Quality Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. For use in electrical motors, tools and household appliances. |
Equivalent: 6209-2RS/C3
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 21.6 kN |
| Fatigue load limit Pu | 0.915 |
| Reference speed | 17000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.41 kg |
| d1 | 57.6mm |
| D2 | 75.2mm |
| r1r2 | 1.1mm |
| da min | 52mm |
| Da max | 78mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 14 |
