• NTN 6209 Open Type Deep Groove Ball Bearing 45x85x19mm
  • NTN 6209 Open Type Deep Groove Ball Bearing 45x85x19mm
  • NTN 6209 Open Type Deep Groove Ball Bearing 45x85x19mm
1 3

SKU: 6209-NTN

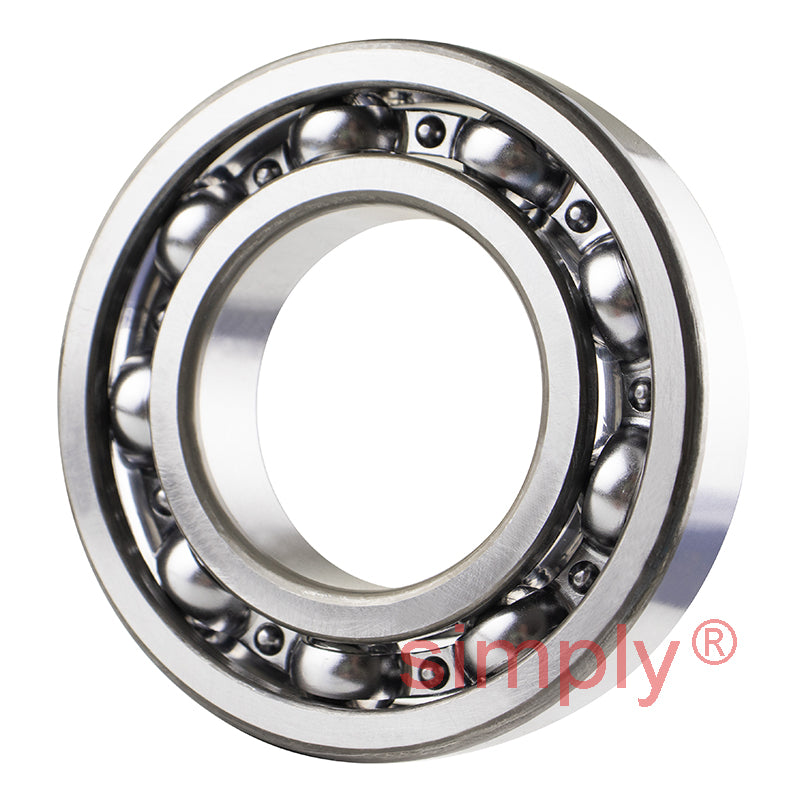

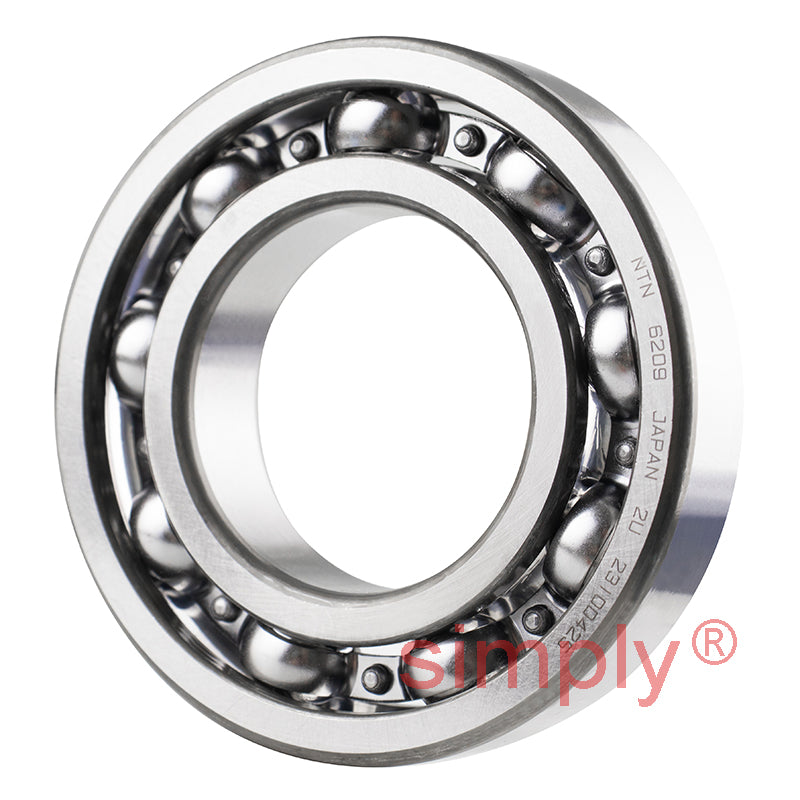

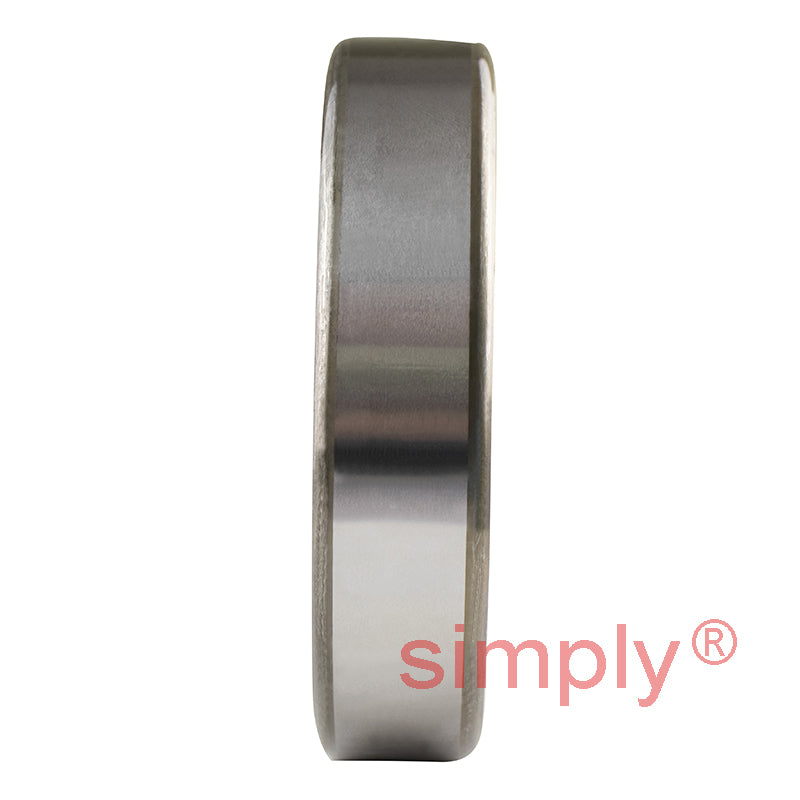

NTN 6209 Open Type Deep Groove Ball Bearing 45x85x19mm

NTN 6209 Open Type Deep Groove Ball Bearing 45x85x19mm
CHF 23.00 ex VAT
CHF 23.00 ex VAT
Sale Sold out

Equivalent to: 6209CM 209K 1209 209S 6209 3209 6A

In stock

Price Break
3+ CHF 17.68
5+ CHF 16.69
10+ CHF 16.49
25+ CHF 16.29
49+ CHF 16.09
74+ CHF 15.90
99+ CHF 14.90
199+ CHF 14.70
249+ CHF 14.51
499+ CHF 14.31
999+ CHF 13.91
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.


Equivalent: 6209CM 209K 1209 209S 6209 3209 6A
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
19mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 45mm
D 85mm
B 19mm
r<sub>s</sub> min 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 36 kN
C<sub>or</sub> 20.4 kN
C<sub>u</sub> 1.6 kN
f<sub>0</sub> 14.1 kN
Grease 7800 rpm
Oil 9200 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 51.5mm
D<sub>a</sub> Max. 78.5mm
r<sub>as</sub> Max. 1mm
Weight 0.398 kg
