SKU: 6209-ZZE-NACHI

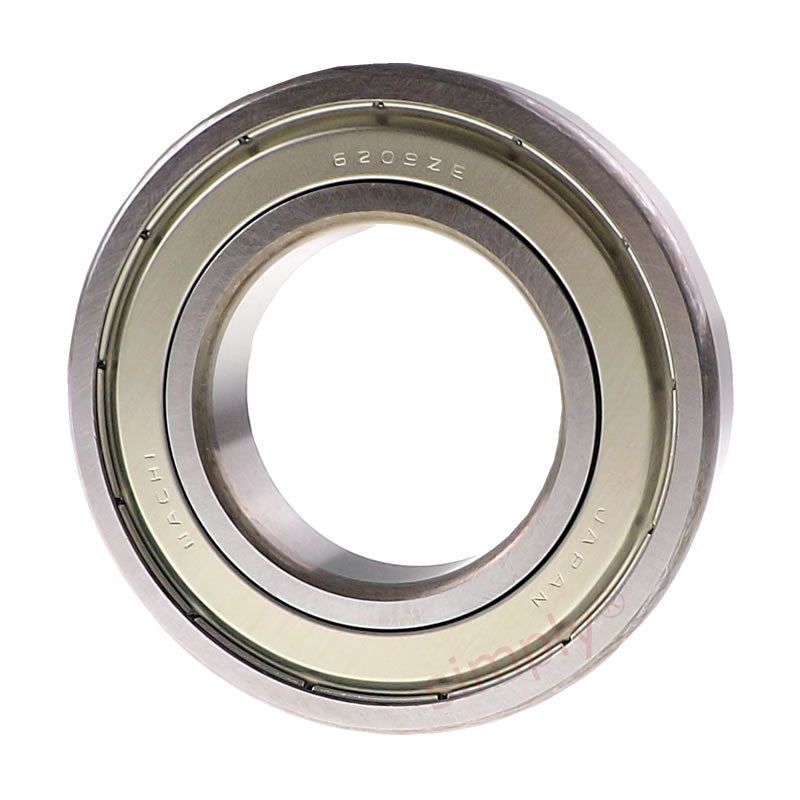

NACHI 6209ZZE Metal Shielded Deep Groove Ball Bearing 45x85x19mm
NACHI 6209ZZE Metal Shielded Deep Groove Ball Bearing 45x85x19mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
Equivalent to: 6209ZZ 62092Z 6209.2Z 6209KDD 6209DD 62092ZR 6209FF
In stock
Price Break
5+
CHF 12.01
9+
CHF 11.33
19+
CHF 11.20
29+
CHF 11.06
49+
CHF 10.93
74+
CHF 10.79
99+
CHF 10.12
199+
CHF 9.98
249+
CHF 9.85
499+
CHF 9.71
999+
CHF 9.44
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6209ZZ 62092Z 6209.2Z 6209KDD 6209DD 62092ZR 6209FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 85mm |
| Width B | 19mm |
| Min radius r | 1.1mm |
| Dynamic load | 32500 kN |
| Static load | 20500 kN |
| Max speed | 7800 rpm |
| da min | 52mm |
| Da max | 78mm |
| ra max | 1mm |
| Weight | 0.407 kg |
