SKU: 6209LLBC3/5K-NTN

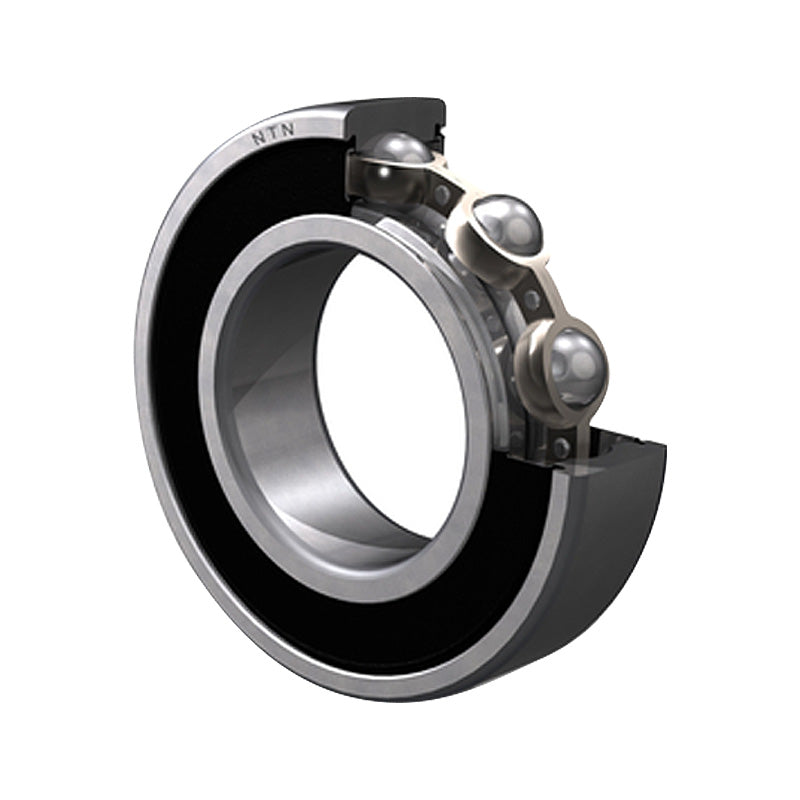

NTN 6209LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 45x85x19mm
NTN 6209LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 45x85x19mm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
Equivalent to: 62092NKEC3 6209VVC3 62092RSLC3 62092RZC3
In stock
Price Break
3+
CHF 15.58
5+
CHF 14.71
10+
CHF 14.53
25+
CHF 14.36
49+
CHF 14.18
74+
CHF 14.01
99+
CHF 13.13
199+
CHF 12.96
249+
CHF 12.78
499+
CHF 12.61
999+
CHF 12.26
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 62092NKEC3 6209VVC3 62092RSLC3 62092RZC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 85mm |
| B | 19mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 36 kN |
| C<sub>or</sub> | 20.4 kN |
| C<sub>u</sub> | 1.6 kN |
| f<sub>0</sub> | 14.1 kN |
| Grease | 7800 rpm |
| Oil | 9200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 51.5mm |
| d<sub>a</sub> Max. | 55.5mm |
| D<sub>a</sub> Max. | 78.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.398 kg |
