SKU: 6209N-NTN

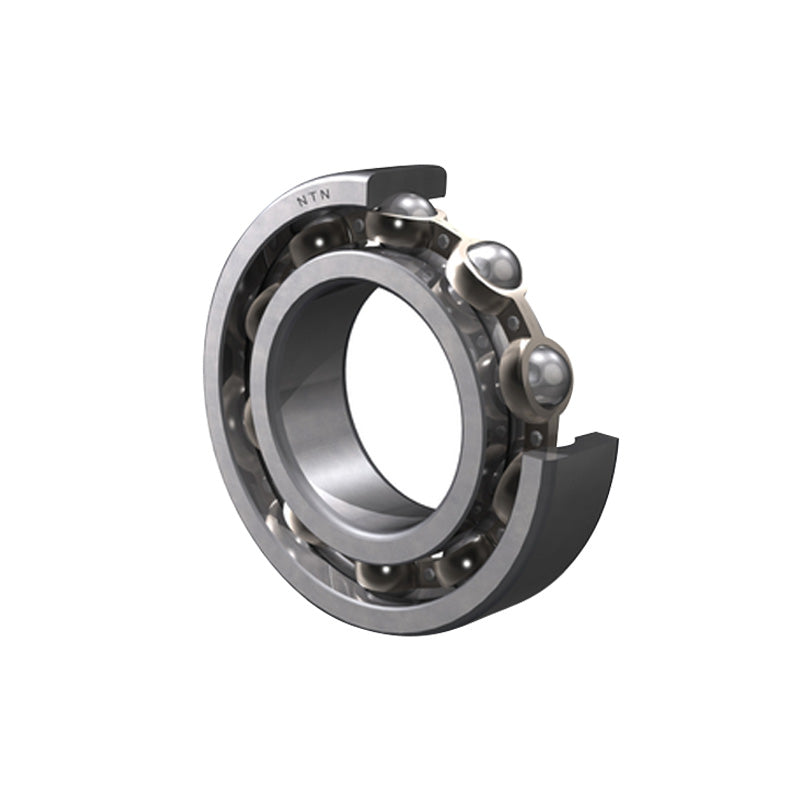

NTN 6209N Open Type Deep Groove Ball Bearing with Snap Ring Groove 45x85x19mm
NTN 6209N Open Type Deep Groove Ball Bearing with Snap Ring Groove 45x85x19mm
Regular price
CHF 47.83
ex VAT
Regular price
Sale price
CHF 47.83
ex VAT
Equivalent to: 6209NCM
In stock
Price Break
10+
CHF 42.57
19+
CHF 40.18
29+
CHF 39.70
39+
CHF 39.22
49+
CHF 38.74
74+
CHF 38.26
99+
CHF 35.87
199+
CHF 35.39
249+
CHF 34.92
499+
CHF 34.44
999+
CHF 33.48
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings with Snap Ring Groove: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. These bearings have a groove on the outside diameter to allow the use of a snap ring. (Not Supplied).
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
Equivalent: 6209NCM
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 85mm |
| B | 19mm |
| r<sub>s</sub> min | 1.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 36 kN |
| C<sub>or</sub> | 20.4 kN |
| C<sub>u</sub> | 1.6 kN |
| f<sub>0</sub> | 14.1 kN |
| Grease | 7800 rpm |
| Oil | 9200 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 81.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 51.5mm |
| d<sub>a</sub> Max. | 55.5mm |
| D<sub>a</sub> Max. | 78.5mm |
| D<sub>X</sub> (approx) | 93mm |
| C<sub>Y</sub> Max. | 4.6mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.398 kg |
