SKU: 6210LLUNR/2AS-NTN

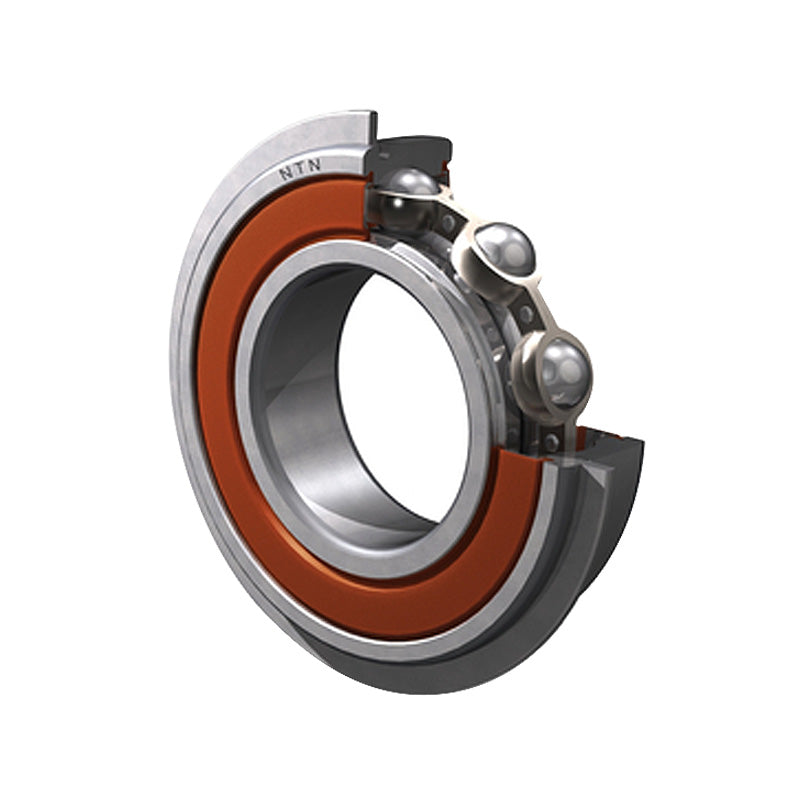

NTN 6210LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 50x90x20mm
Equivalent to: 6210LLUNRCM 6210LLUNR 6210NSENR 6210DUNR 6210RSNR 6210RSHNR 6210PNR 6210RSRNR 6210LUNR 62102NSENR 6210DDUNR 62102RSNR 6210-2RSNR 62102RS1NR 62102RSHNR 6210PPNR 62102RSRNR 6210LLUNR 6210RS2NR 62102RS2NR 62102RSLNR 6210LFSNR 6210EENR Z49510 210SZG
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 90mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 39 kN |
| C<sub>or</sub> | 23.2 kN |
| C<sub>u</sub> | 1.82 kN |
| f<sub>0</sub> | 14.4 |
| --- | Fitting Dimensions |
| Speed | 4700rpm |
| D<sub>1</sub> Max. | 86.79mm |
| a Max. | 3.28mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
