SKU: 6211LLBC3/5K-NTN

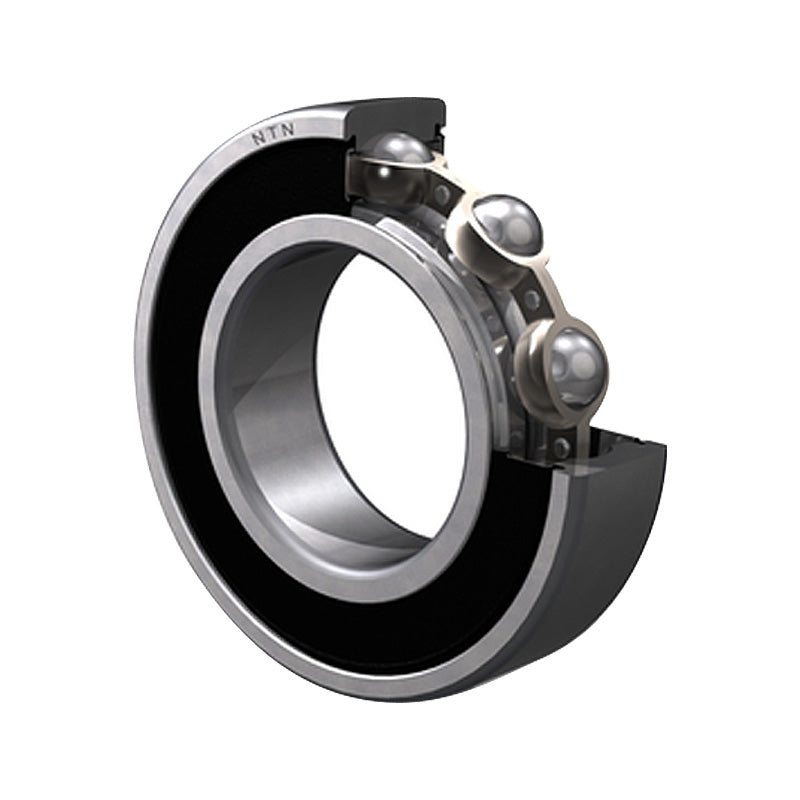

NTN 6211LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 55x100x21mm
NTN 6211LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 55x100x21mm
Regular price
CHF 29.46
ex VAT
Regular price
Sale price
CHF 29.46
ex VAT
Equivalent to: 62112NKEC3 6211VVC3 62112RSLC3 62112RZC3
In stock
Price Break
10+
CHF 26.22
19+
CHF 24.75
29+
CHF 24.45
39+
CHF 24.16
49+
CHF 23.86
74+
CHF 23.57
99+
CHF 22.10
199+
CHF 21.80
249+
CHF 21.51
499+
CHF 21.21
999+
CHF 20.62
Couldn't load pickup availability
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 62112NKEC3 6211VVC3 62112RSLC3 62112RZC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 100mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 48 kN |
| C<sub>or</sub> | 29.2 kN |
| C<sub>u</sub> | 2.29 kN |
| f<sub>0</sub> | 14.3 kN |
| Grease | 6400 rpm |
| Oil | 7600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 63mm |
| d<sub>a</sub> Max. | 67mm |
| D<sub>a</sub> Max. | 92mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.601 kg |
