SKU: 6212-2Z/C4VT127-SKF

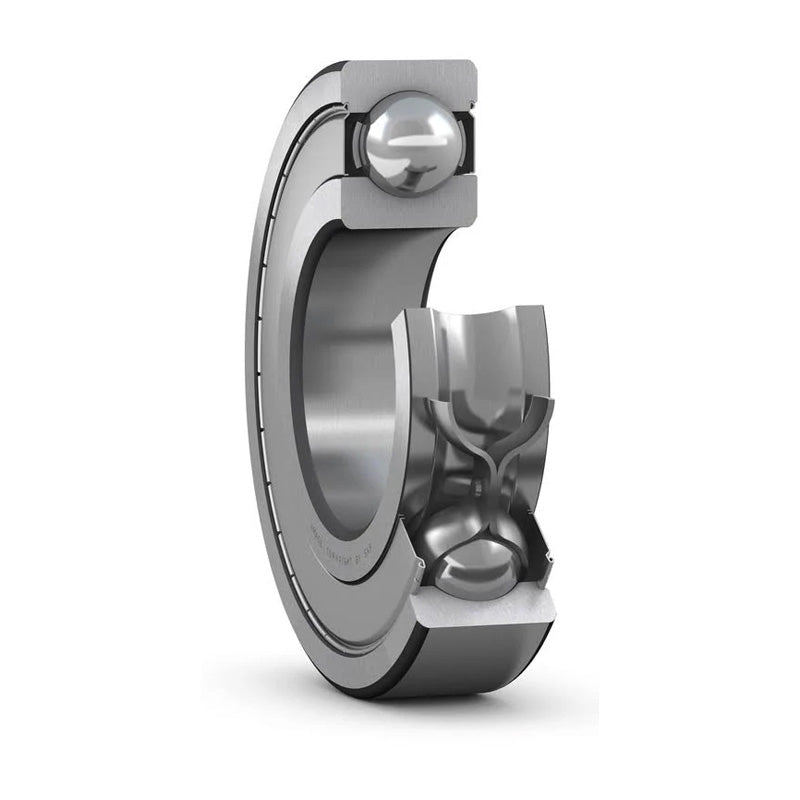

SKF 62122ZC4VT127 Metal Shielded Deep Groove Ball Bearing 60x110x22mm
SKF 62122ZC4VT127 Metal Shielded Deep Groove Ball Bearing 60x110x22mm
Regular price
CHF 323.05
ex VAT
Regular price
Sale price
CHF 323.05
ex VAT
Equivalent to: 6212ZZC4VT127 62122Z 62122ZRC4VT127
In stock
Price Break
10+
CHF 287.51
19+
CHF 271.36
29+
CHF 268.13
39+
CHF 264.90
49+
CHF 261.67
74+
CHF 258.44
99+
CHF 242.29
199+
CHF 239.06
249+
CHF 235.83
499+
CHF 232.60
999+
CHF 226.14
Couldn't load pickup availability
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6212ZZC4VT127 62122Z 62122ZRC4VT127
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 36 kN |
| Fatigue load limit Pu | 1.53 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 0.78 kg |
| d1 | 75.5mm |
| D2 | 98mm |
| r1r2 min | 1.5mm |
| da min | 69mm |
| Da max | 101mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
