SKU: 6212-2ZNR-SKF

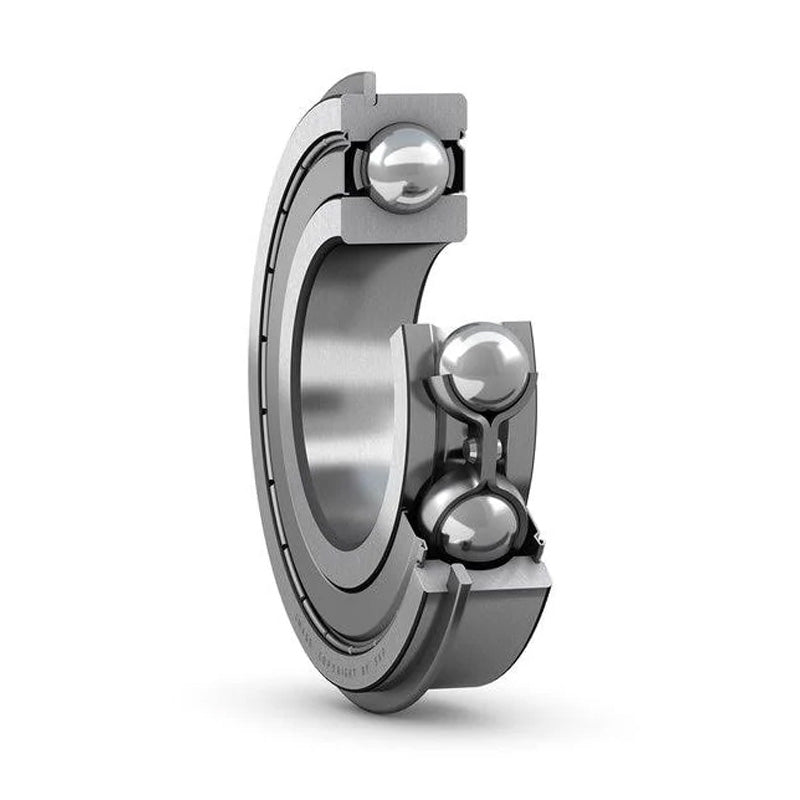

SKF 62122ZNR Sealed Snap Ring Deep Groove Ball Bearing 60x110x22mm
SKF 62122ZNR Sealed Snap Ring Deep Groove Ball Bearing 60x110x22mm
Regular price
CHF 91.00
ex VAT
Regular price
Sale price
CHF 91.00
ex VAT
In stock
Price Break
4+
CHF 71.84
10+
CHF 67.81
20+
CHF 67.00
30+
CHF 66.19
50+
CHF 65.39
75+
CHF 64.58
100+
CHF 60.54
200+
CHF 59.73
250+
CHF 58.93
500+
CHF 58.12
1000+
CHF 56.51
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load C | 55.3 kN |
| Static load Co | 36 kN |
| Fatigue load limit Pu | 1.53 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.81 kg |
| Snap ring | SP 110 |
| d1 | 75.5mm |
| D2 | 98mm |
| D3 | 106.81mm |
| D4 | 116.6mm |
| b | 2.7mm |
| f | 2.46mm |
| C | 3.28mm |
| r1r2 min | 1.5mm |
| ro max | 0.6mm |
| da max | 69mm |
| Da max | 75.4mm |
| Db min | 101mm |
| ba min | 118mm |
| Ca max | 3mm |
| ra max | 5.74mm |
| Calculation factor kr | 1.5 |
| Calculation factor f0 | 0.025 |
