SKU: 6212L1-NTN

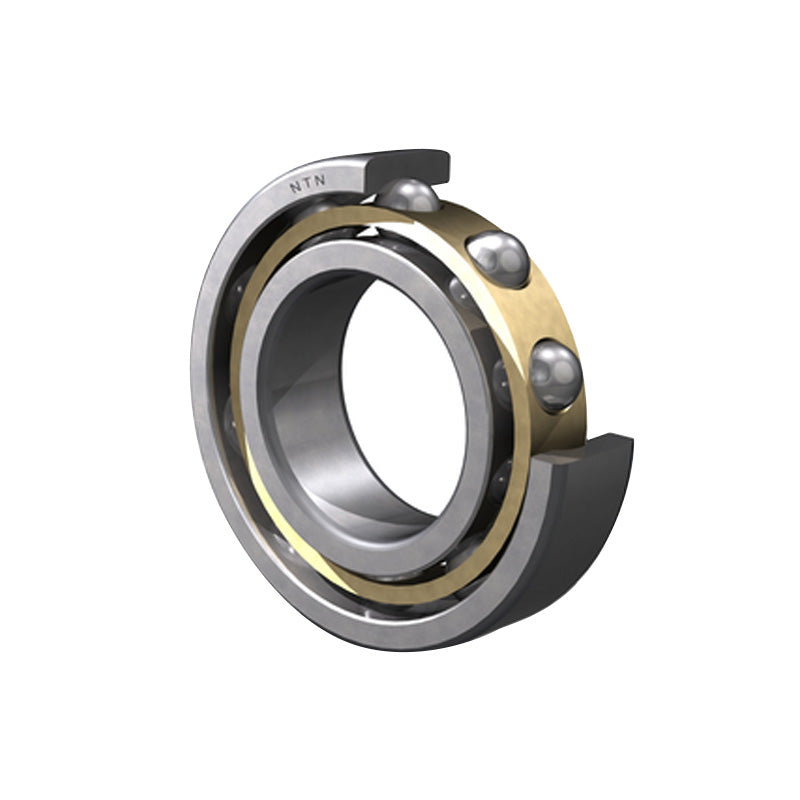

NTN 6212L1 Machined Brass Cage Open Type Deep Groove Ball Bearing 60x110x22mm
NTN 6212L1 Machined Brass Cage Open Type Deep Groove Ball Bearing 60x110x22mm
Regular price
CHF 72.00
ex VAT
Regular price
Sale price
CHF 72.00
ex VAT
In stock
Price Break
3+
CHF 56.70
5+
CHF 53.52
10+
CHF 52.88
25+
CHF 52.24
49+
CHF 51.61
74+
CHF 50.97
99+
CHF 47.78
199+
CHF 47.15
249+
CHF 46.51
499+
CHF 45.87
999+
CHF 44.60
Share this product
Description
Description
Machined Brass Cage Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Most brass cages are machined from cast or wrought brass. They are unaffected by most common bearing lubricants, including synthetic oils and greases, and can be cleaned using organic solvents.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 110mm |
| B | 22mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 58 Kn |
| C<sub>or</sub> | 36 kN |
| C<sub>u</sub> | 2.83 kN |
| f<sub>0</sub> | 14.3 kN |
| Grease | 6000 rpm |
| Oil | 7000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 68mm |
| D<sub>a</sub> Max. | 102mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 0.783 kg |
