SKU: 6212ZZNR/2AS-NTN

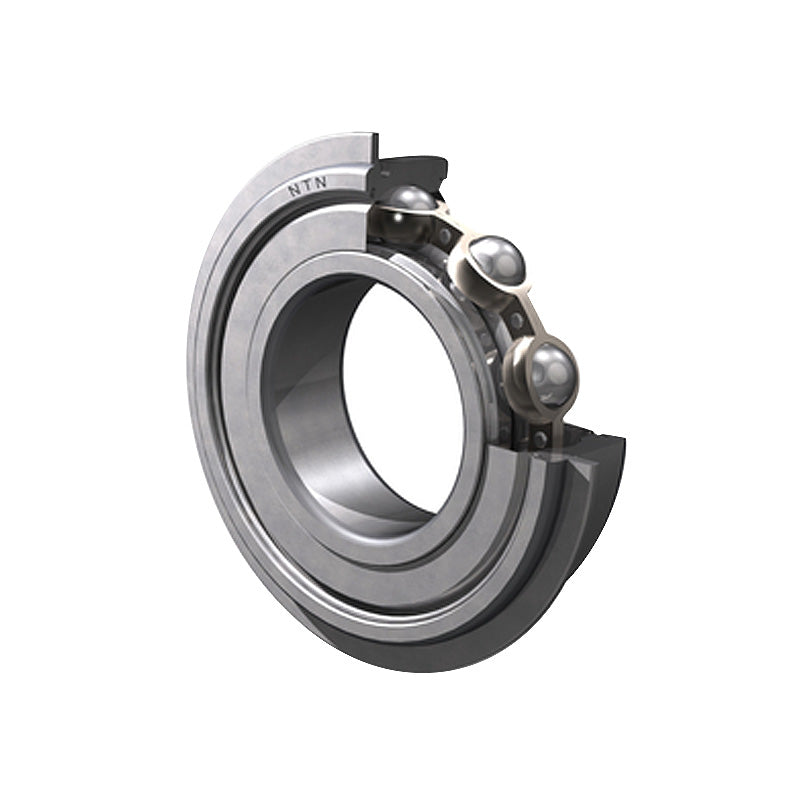

NTN 6212ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 60x110x22mm
Equivalent to: 6212ZZNRCM 6212ZZNR 6212ZZNR 62122ZNR 6212ZZNR 62122ZRNR 6212ZZENR 6212FFNR 6212DDNR 6212DDCNR 6212KDDCNR EL602ZNR EL60ZZNR 9112KDDG 4773L12 112KSFFG
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6212ZZNRCM 6212ZZNR 6212ZZNR 62122ZNR 6212ZZNR 62122ZRNR 6212ZZENR 6212FFNR 6212DDNR 6212DDCNR 6212KDDCNR EL602ZNR EL60ZZNR 9112KDDG 4773L12 112KSFFG
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 110mm |
| B | 22mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 58 kN |
| C<sub>or</sub> | 36 kN |
| C<sub>u</sub> | 2.83 kN |
| f<sub>0</sub> | 14.3 rpm |
| Grease | 6000 rpm |
| --- | Fitting Dimensions |
| Oil | 7000 rpm |
| D<sub>1</sub> Max. | 106.81mm |
| a Max. | 3.28mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
