SKU: 6213LLUNR/2AS-NTN

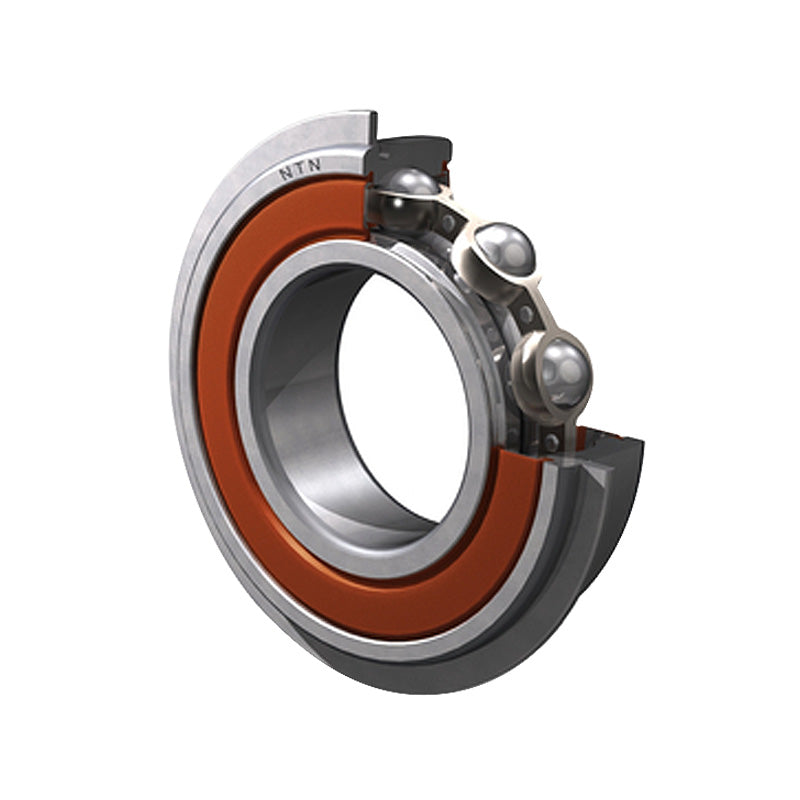

NTN 6213LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 65x120x23mm
Equivalent to: 6213LLUNRCM 6213LLUNR 6213NSENR 6213DUNR 6213RSNR 6213RSHNR 6213PNR 6213RSRNR 6213LUNR 62132NSENR 6213DDUNR 62132RSNR 6213-2RSNR 62132RS1NR 62132RSHNR 6213PPNR 62132RSRNR 6213LLUNR 6213RS2NR 62132RS2NR 62132RSLNR 6213LFSNR 6213EENR Z49513 213SZG
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 120mm |
| B | 23mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 63.5 kN |
| C<sub>or</sub> | 40 kN |
| C<sub>u</sub> | 3.15 kN |
| f<sub>0</sub> | 14.4 |
| --- | Fitting Dimensions |
| Speed | 3600rpm |
| D<sub>1</sub> Max. | 115.21mm |
| a Max. | 4.06mm |
| b Min. | 3.1mm |
| r<sub>o</sub> Max. | 0.6mm |
