SKU: 6215-NTN

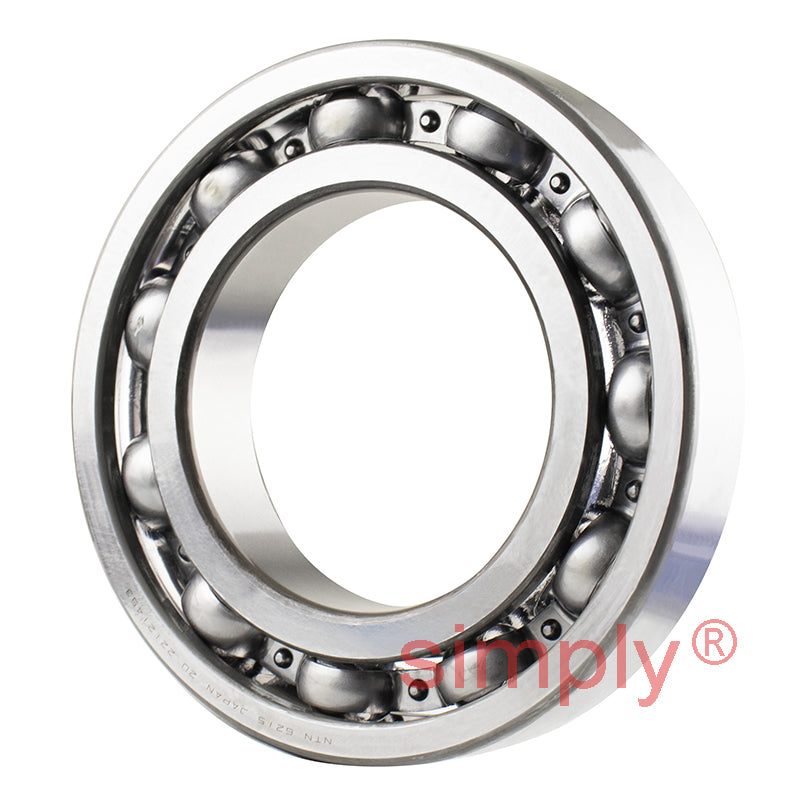

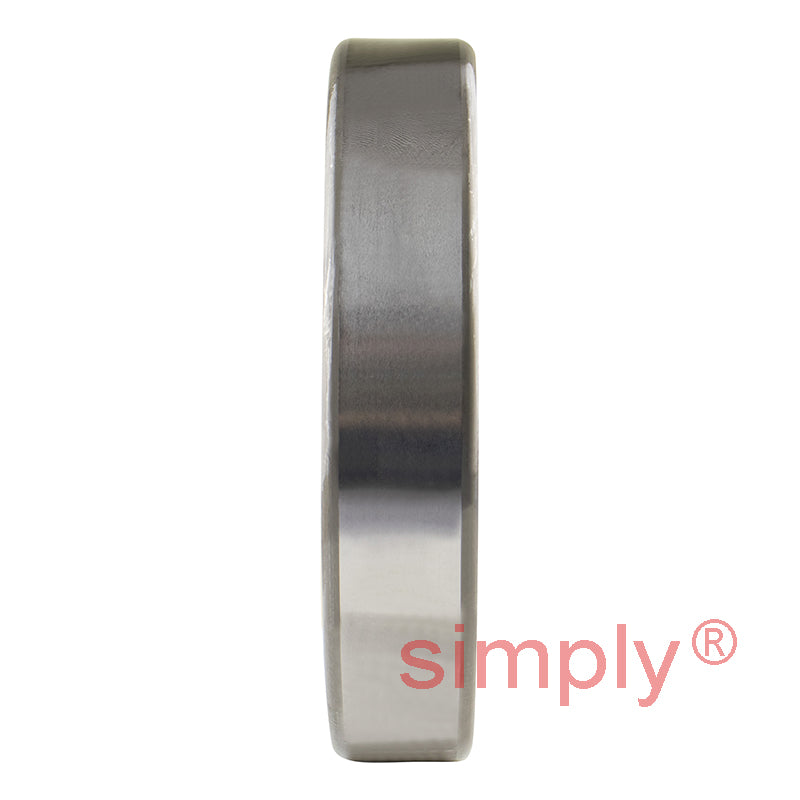

NTN 6215 Open Type Deep Groove Ball Bearing 75x130x25mm
NTN 6215 Open Type Deep Groove Ball Bearing 75x130x25mm
Regular price
CHF 78.00
ex VAT
Regular price
Sale price
CHF 78.00
ex VAT
Equivalent to: 6215CM 215K 1215 215S 6215 3215 12A
In stock
Price Break
3+
CHF 61.55
5+
CHF 58.09
10+
CHF 57.40
25+
CHF 56.71
49+
CHF 56.02
74+
CHF 55.33
99+
CHF 51.87
199+
CHF 51.18
249+
CHF 50.49
499+
CHF 49.80
999+
CHF 48.41
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6215CM 215K 1215 215S 6215 3215 12A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 130mm |
| B | 25mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 73.5 kN |
| C<sub>or</sub> | 49.5 kN |
| C<sub>u</sub> | 3.8 kN |
| f<sub>0</sub> | 14.7 kN |
| Grease | 4800 rpm |
| Oil | 5600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 83mm |
| D<sub>a</sub> Max. | 122mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 1.18 kg |
