SKU: 6216-NTN

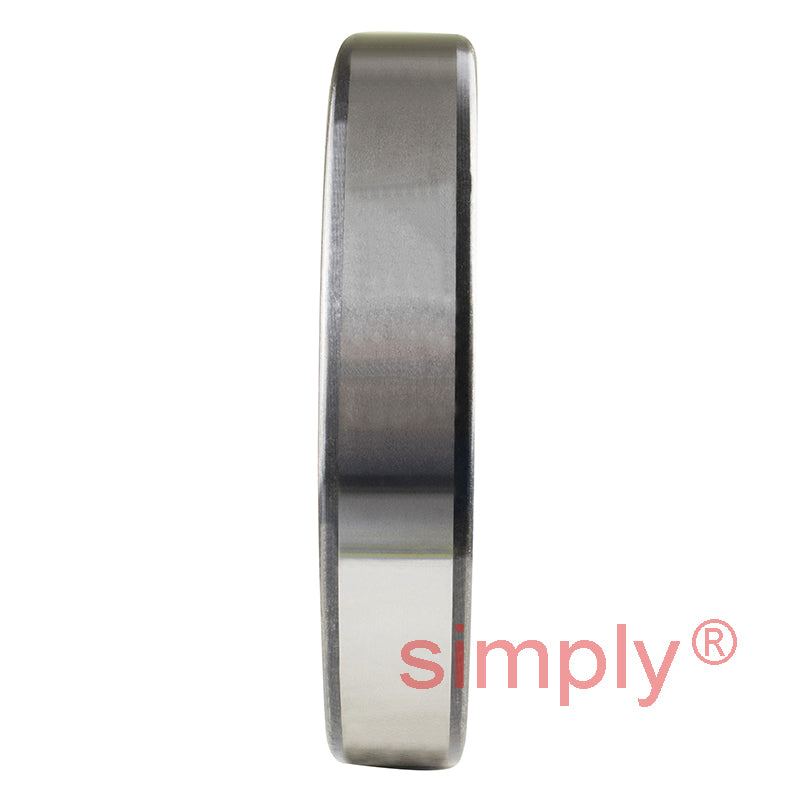

NTN 6216 Open Type Deep Groove Ball Bearing 80x140x26mm
NTN 6216 Open Type Deep Groove Ball Bearing 80x140x26mm
Regular price
CHF 91.00
ex VAT
Regular price
Sale price
CHF 91.00
ex VAT
Equivalent to: 6216CM 216K 1216 216S 6216 3216 13A
In stock
Price Break
3+
CHF 72.04
5+
CHF 67.99
10+
CHF 67.18
25+
CHF 66.37
49+
CHF 65.56
74+
CHF 64.75
99+
CHF 60.71
199+
CHF 59.90
249+
CHF 59.09
499+
CHF 58.28
999+
CHF 56.66
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6216CM 216K 1216 216S 6216 3216 13A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 140mm |
| B | 26mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 80.5 kN |
| C<sub>or</sub> | 53 kN |
| C<sub>u</sub> | 3.95 kN |
| f<sub>0</sub> | 14.6 kN |
| Grease | 4500 rpm |
| Oil | 5300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 89mm |
| D<sub>a</sub> Max. | 131mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.4 kg |
