SKU: 6217-MB

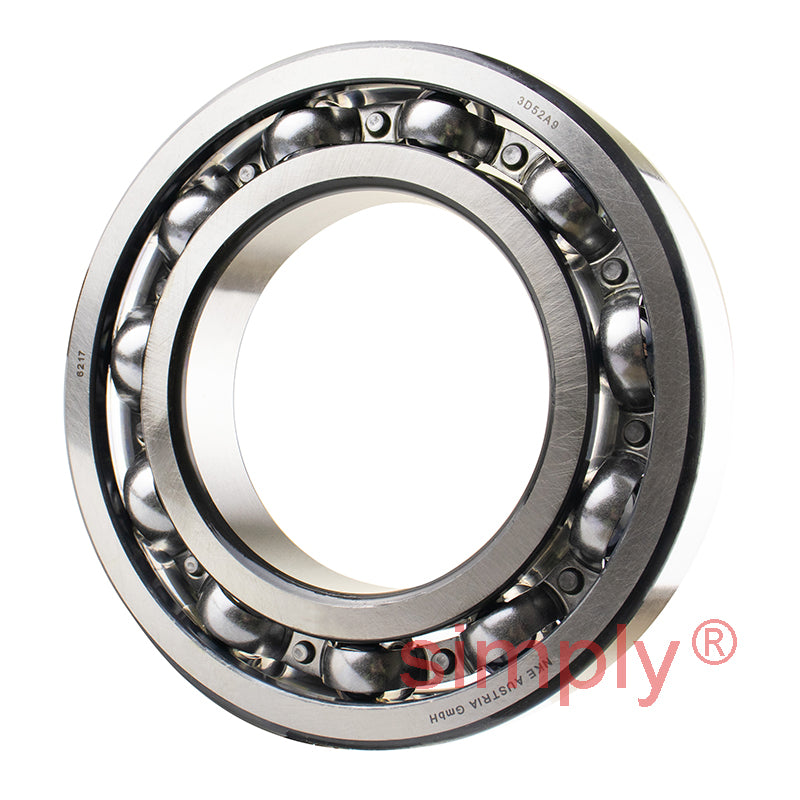

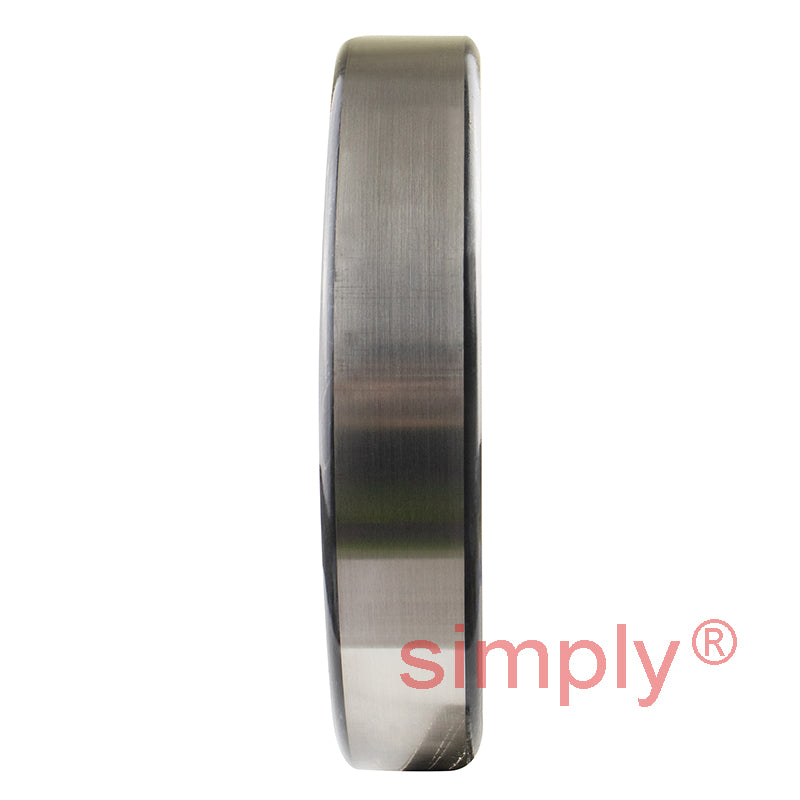

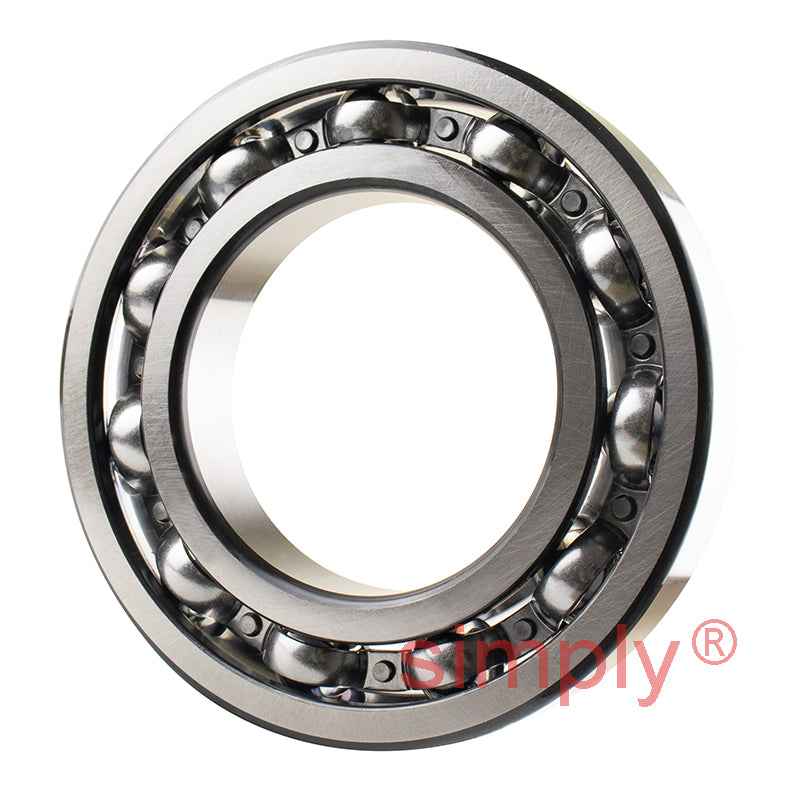

Major Brand 6217 Open Deep Groove Ball Bearing 85x150x28mm
Major Brand 6217 Open Deep Groove Ball Bearing 85x150x28mm
Regular price
CHF 65.00
ex VAT
Regular price
Sale price
CHF 65.00
ex VAT
In stock
Price Break
10+
CHF 51.78
19+
CHF 48.87
29+
CHF 48.29
39+
CHF 47.71
49+
CHF 47.13
74+
CHF 46.54
99+
CHF 43.64
199+
CHF 43.05
249+
CHF 42.47
499+
CHF 41.89
999+
CHF 40.73
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| B | 28mm |
| Dynamic load C | 87.1 kN |
| Static load Co | 64 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Mass | 1.8 kg |
| d1 | 106mm |
| D1 | 130mm |
| D2 | 134mm |
| r1r2 min | 2mm |
| da min | 96mm |
| Da max | 139mm |
| ra max | 2mm |
| Calc factor Kr | 0.025 |
| Calc factor | 15 |
