SKU: 6217-NTN

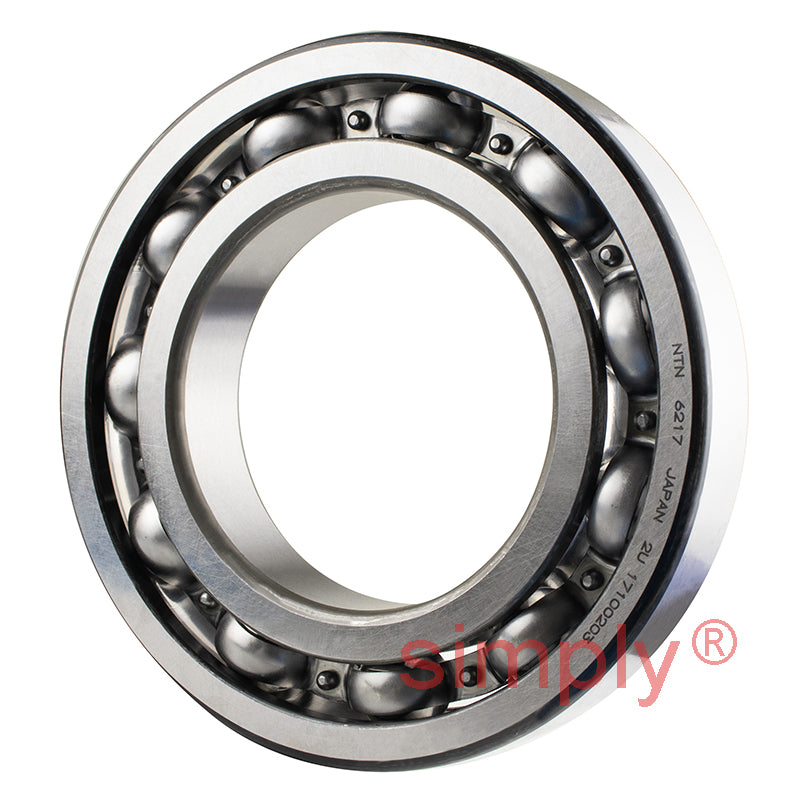

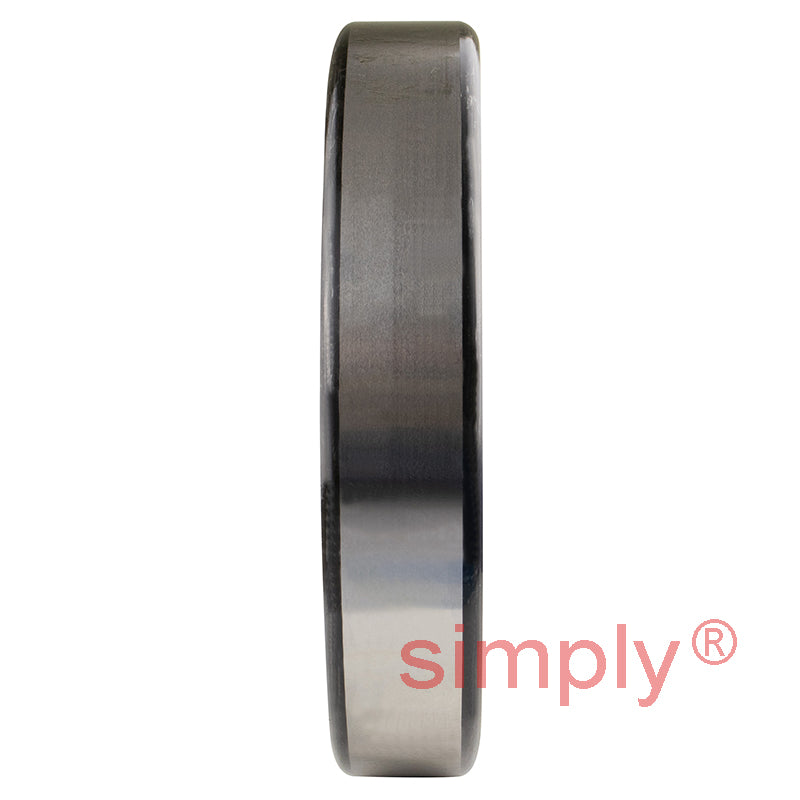

NTN 6217 Open Type Deep Groove Ball Bearing 85x150x28mm
NTN 6217 Open Type Deep Groove Ball Bearing 85x150x28mm
Regular price
CHF 114.00
ex VAT
Regular price
Sale price
CHF 114.00
ex VAT
Equivalent to: 6217CM 217K 1217 217S 6217 3217 14A
In stock
Price Break
3+
CHF 90.45
5+
CHF 85.37
10+
CHF 84.35
25+
CHF 83.34
49+
CHF 82.32
74+
CHF 81.30
99+
CHF 76.22
199+
CHF 75.21
249+
CHF 74.19
499+
CHF 73.17
999+
CHF 71.14
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6217CM 217K 1217 217S 6217 3217 14A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 85mm |
| D | 150mm |
| B | 28mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 92 kN |
| C<sub>or</sub> | 64 kN |
| C<sub>u</sub> | 4.6 kN |
| f<sub>0</sub> | 14.7 kN |
| Grease | 4200 rpm |
| Oil | 5000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 94mm |
| D<sub>a</sub> Max. | 141mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.79 kg |
