SKU: 6218-2Z/VA228-SKF

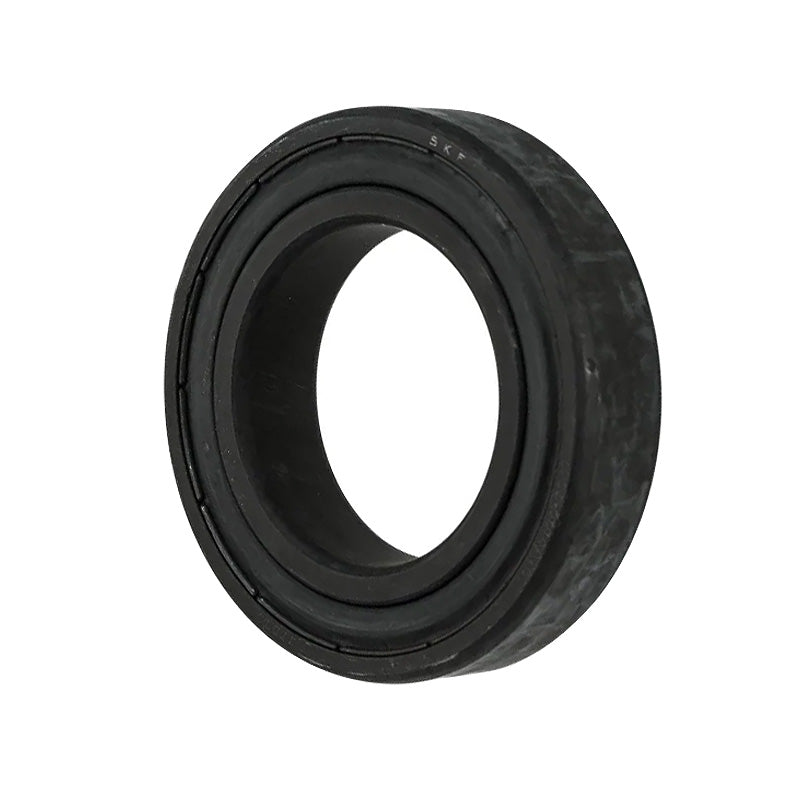

SKF 62182ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 90x160x30mm
SKF 62182ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 90x160x30mm
Regular price
CHF 480.00
ex VAT
Regular price
Sale price
CHF 480.00
ex VAT
In stock
Price Break
10+
CHF 382.24
19+
CHF 360.76
29+
CHF 356.47
39+
CHF 352.18
49+
CHF 347.88
74+
CHF 343.59
99+
CHF 322.11
199+
CHF 317.82
249+
CHF 313.52
499+
CHF 309.23
999+
CHF 300.64
Share this product
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 160mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 160mm |
| B | 30mm |
| d1 | 112mm |
| D2 | 143mm |
| r1r2 | 2mm |
| Basic load rating Co | 73.5 kN |
| Weight | 2.15 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
