SKU: 6219-NTN

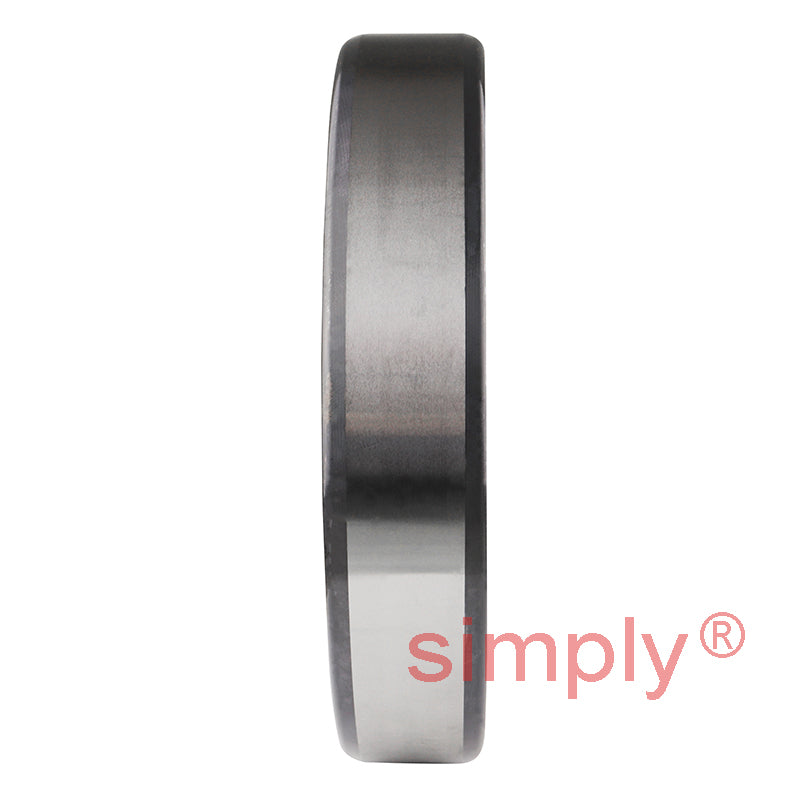

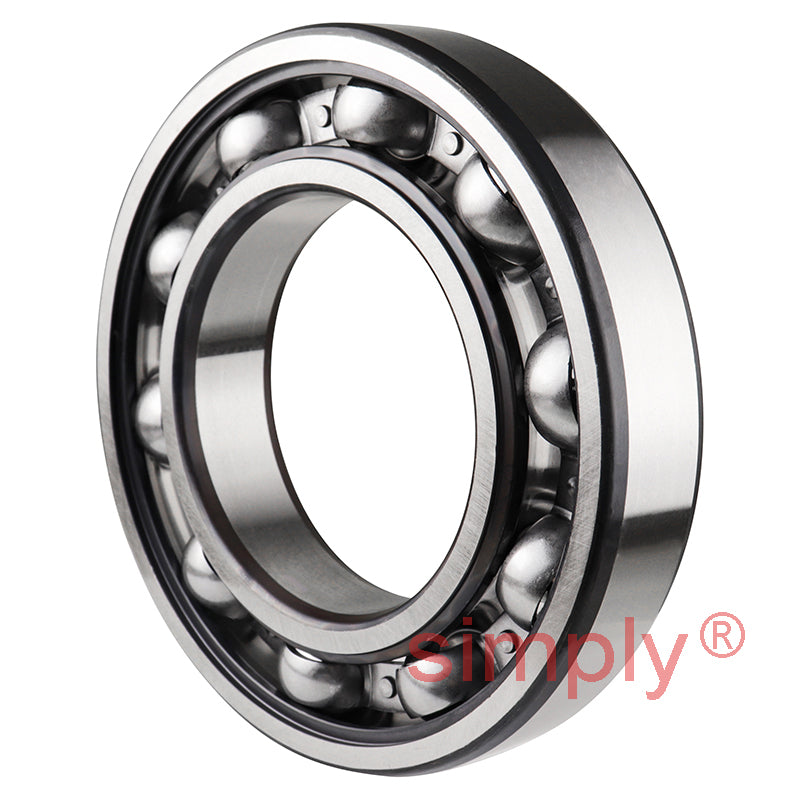

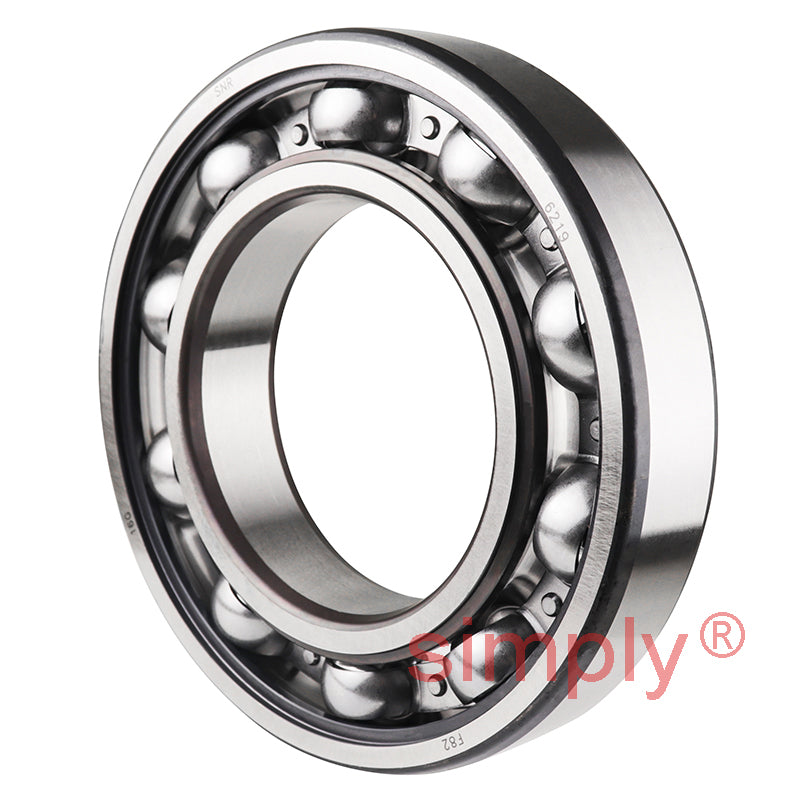

NTN 6219 Open Type Deep Groove Ball Bearing 95x170x32mm
NTN 6219 Open Type Deep Groove Ball Bearing 95x170x32mm
Regular price
CHF 169.79
ex VAT
Regular price
Sale price
CHF 169.79
ex VAT
Equivalent to: 6219CM 219K 1219 219S 6219 3219 16A
In stock
Price Break
10+
CHF 151.11
19+
CHF 142.62
29+
CHF 140.93
39+
CHF 139.23
49+
CHF 137.53
74+
CHF 135.83
99+
CHF 127.34
199+
CHF 125.64
249+
CHF 123.95
499+
CHF 122.25
999+
CHF 118.85
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6219CM 219K 1219 219S 6219 3219 16A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 95mm |
| D | 170mm |
| B | 32mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 121 kN |
| C<sub>or</sub> | 82 kN |
| C<sub>u</sub> | 5.55 kN |
| f<sub>0</sub> | 14.4 kN |
| Grease | 3700 rpm |
| Oil | 4400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 106mm |
| D<sub>a</sub> Max. | 159mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 2.62 kg |
