SKU: 6220-NTN

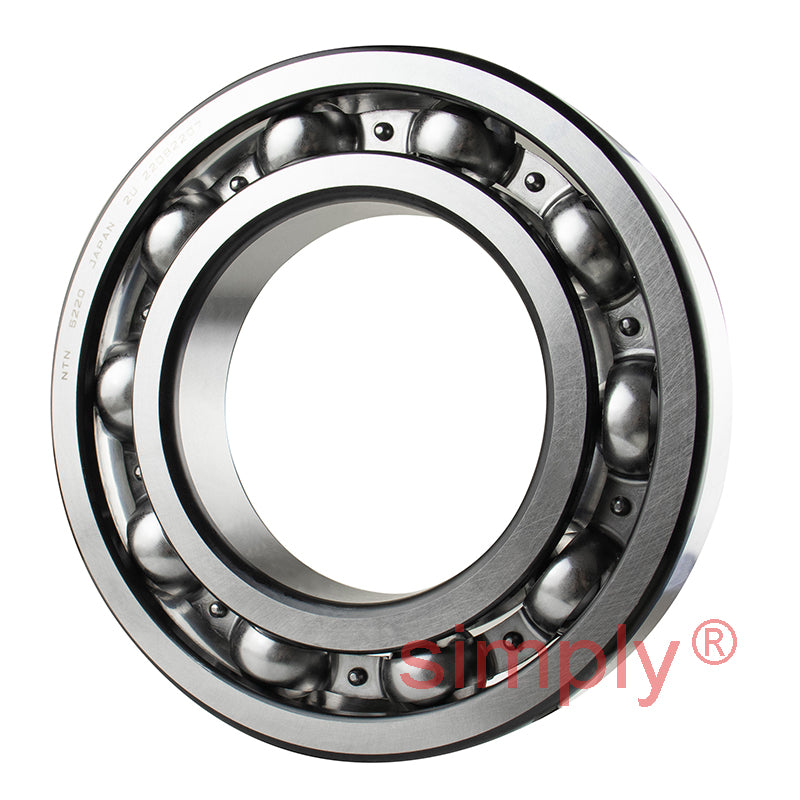

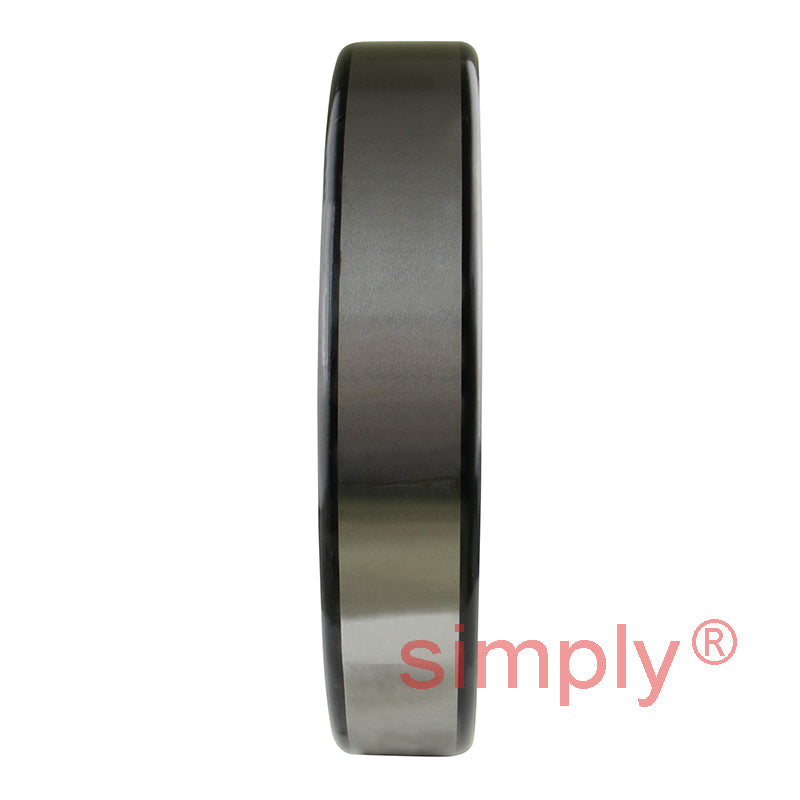

NTN 6220 Open Type Deep Groove Ball Bearing 100x180x34mm
NTN 6220 Open Type Deep Groove Ball Bearing 100x180x34mm
Regular price
CHF 203.00
ex VAT
Regular price
Sale price
CHF 203.00
ex VAT
Equivalent to: 6220CM 220K 1220 220S 6220 3220 17A 100BC02
In stock
Price Break
3+
CHF 161.15
5+
CHF 152.10
10+
CHF 150.29
25+
CHF 148.48
49+
CHF 146.67
74+
CHF 144.86
99+
CHF 135.80
199+
CHF 133.99
249+
CHF 132.18
499+
CHF 130.37
999+
CHF 126.75
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6220CM 220K 1220 220S 6220 3220 17A 100BC02
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 180mm |
| B | 34mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 135 kN |
| C<sub>or</sub> | 93 kN |
| C<sub>u</sub> | 6.15 kN |
| f<sub>0</sub> | 14.4 kN |
| Grease | 3500 rpm |
| Oil | 4200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 111mm |
| D<sub>a</sub> Max. | 169mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 3.14 kg |
