SKU: 6220/VA201-SKF

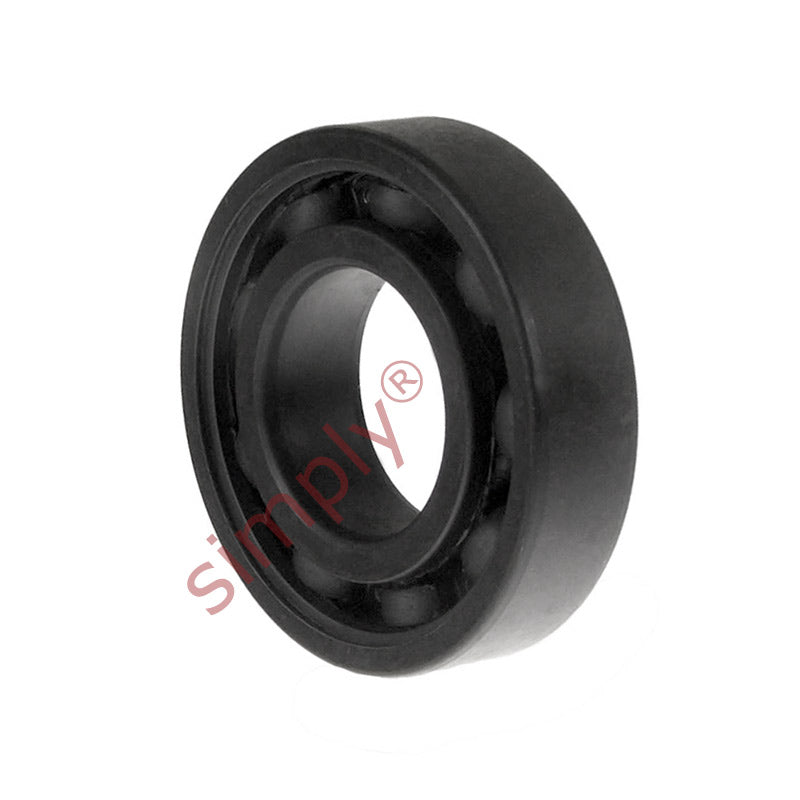

SKF 6220VA201 Single Row Deep Groove Ball Bearing High Temperature Type 100x180x34mm

Name: SKF 6220VA201 Single Row Deep Groove Ball Bearing High Temperature Type 100x180x34mm
Brand: SKF
SKU: 6220/VA201-SKF
Price: 425.00 CHF
Availability: InStock

CHF 425.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 338.15

19+ CHF 319.16

29+ CHF 315.36

39+ CHF 311.56

49+ CHF 307.76

74+ CHF 303.96

99+ CHF 284.96

199+ CHF 281.16

249+ CHF 277.36

499+ CHF 273.56

999+ CHF 265.96

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING
Benefits: High temperature resilience, low maintenance

Brand / Quality:: SKF - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 180mm
Width:: 34mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	100mm
D	180mm
B	34mm
d1	124mm
D2	160mm
r1r2	2.1mm
Basic load rating Co	93 kN
Weight	3.15 kg
Max operating temp	+250 deg C
Min operating temp	-40 deg C
Recommended max speed	100 rpm
