• NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm
  • NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm
  • NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm
1 3

SKU: 6221-NTN

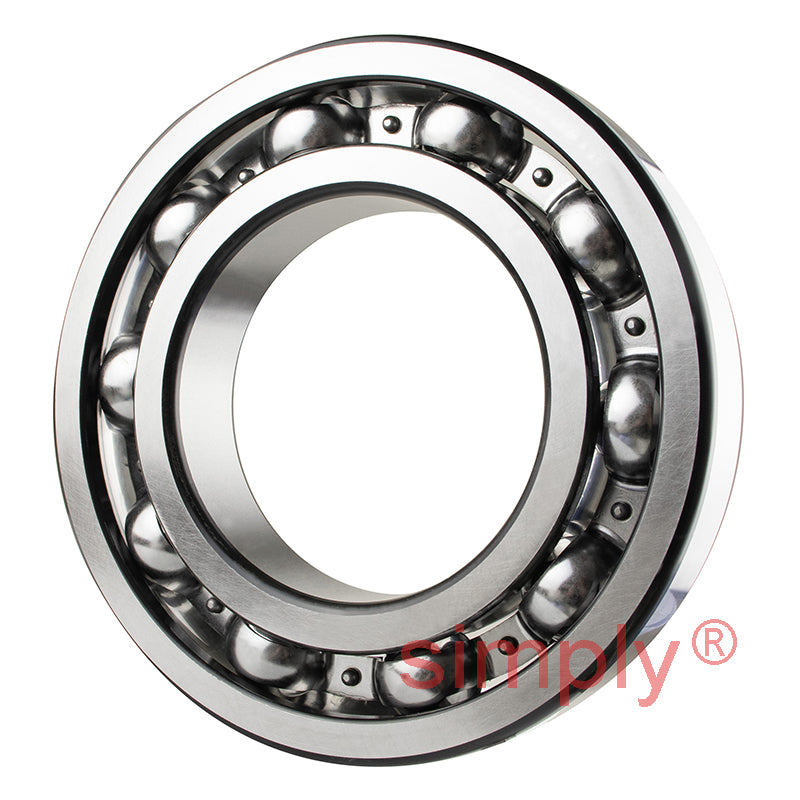

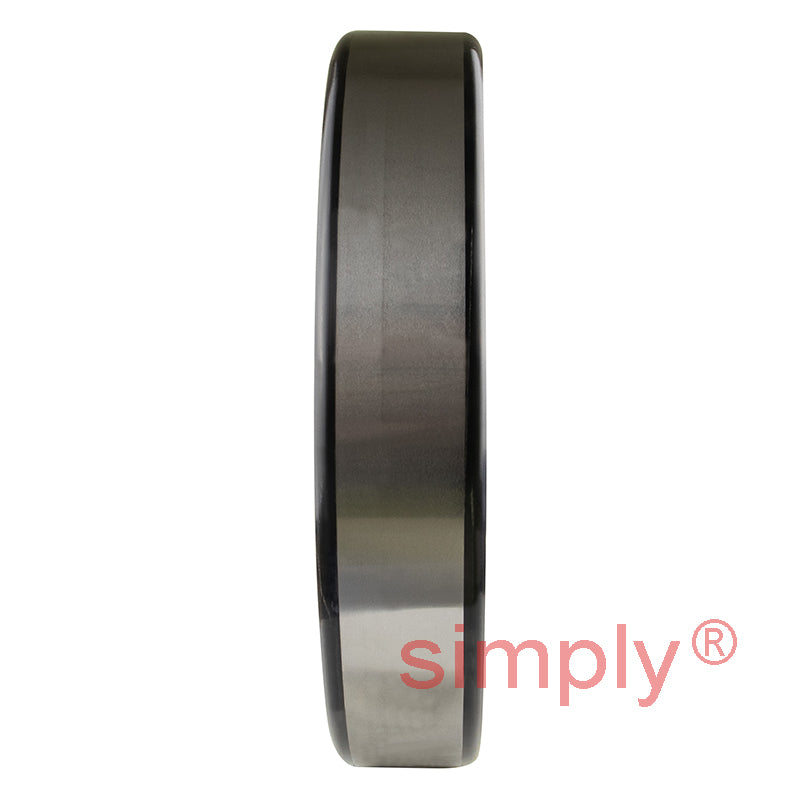

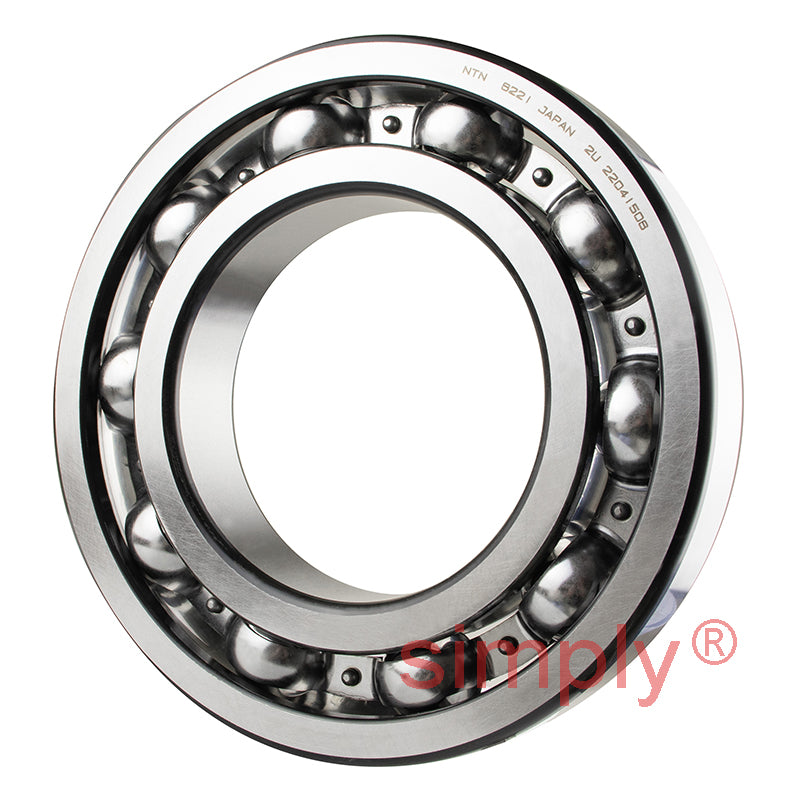

NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm

NTN 6221 Open Type Deep Groove Ball Bearing 105x190x36mm
CHF 244.00 ex VAT
CHF 244.00 ex VAT
Sale Sold out

Equivalent to: 6221CM 221K 1221 221S 6221 3221 18A 105BC02

In stock

Price Break
3+ CHF 193.92
5+ CHF 183.03
10+ CHF 180.85
25+ CHF 178.67
49+ CHF 176.49
74+ CHF 174.31
99+ CHF 163.42
199+ CHF 161.24
249+ CHF 159.06
499+ CHF 156.88
999+ CHF 152.52
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.


Equivalent: 6221CM 221K 1221 221S 6221 3221 18A 105BC02
Brand / Quality:
NTN - High Quality
Inside Diameter:
105mm
Outside Diameter:
190mm
Width:
36mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Bearing dimensions
d 105mm
D 190mm
B 36mm
r<sub>s</sub> min 2.1mm
--- Loads angles and speeds
C<sub>r</sub> 147 kN
C<sub>or</sub> 105 kN
C<sub>u</sub> 6.75 kN
f<sub>0</sub> 14.4 kN
Grease 3400 rpm
Oil 4000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 116mm
D<sub>a</sub> Max. 179mm
r<sub>as</sub> Max. 2mm
Weight 3.7 kg
