SKU: 6222-NSK

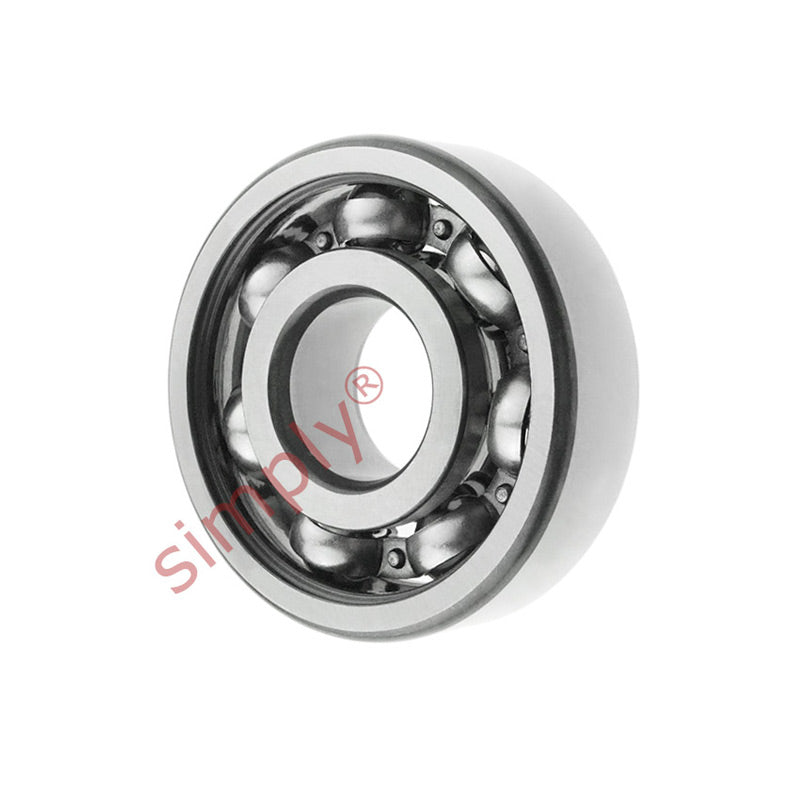

NSK 6222 Open Type Deep Groove Ball Bearing 110x200x38mm
NSK 6222 Open Type Deep Groove Ball Bearing 110x200x38mm
Regular price
CHF 233.00
ex VAT
Regular price
Sale price
CHF 233.00
ex VAT
In stock
Price Break
4+
CHF 185.02
10+
CHF 174.62
20+
CHF 172.54
30+
CHF 170.46
50+
CHF 168.39
75+
CHF 166.31
100+
CHF 155.91
200+
CHF 153.83
250+
CHF 151.76
500+
CHF 149.68
1000+
CHF 145.52
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 110mm |
|---|---|
| D | 200mm |
| B | 38mm |
| r min | 2.1mm |
| Dynamic load Cr | 144000 N (14700 kgf) |
| Static load Cor | 117000 N (11900 kgf) |
| Factor | 14.3 |
| Speed in grease | 2800 rpm |
| Speed in oil | 3400 rpm |
| Mass | 4.45 kg |
