SKU: 6222-NTN

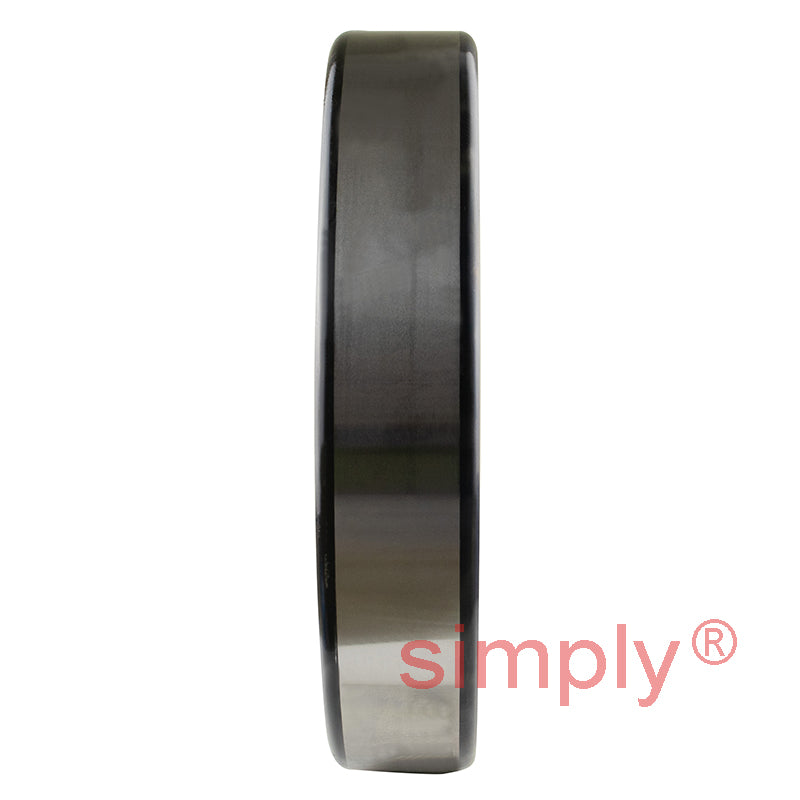

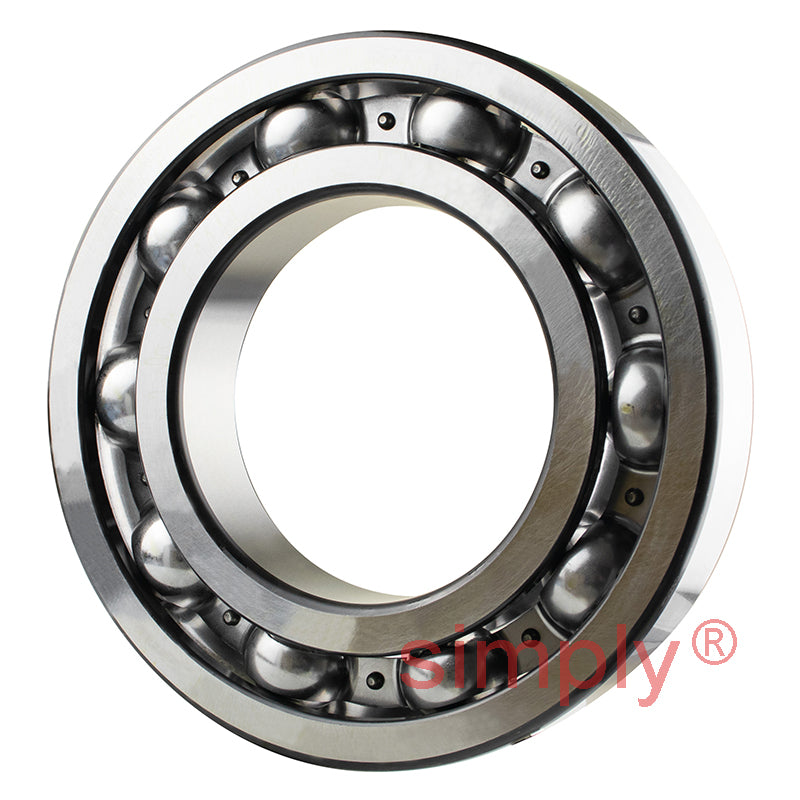

NTN 6222 Open Type Deep Groove Ball Bearing 110x200x38mm
NTN 6222 Open Type Deep Groove Ball Bearing 110x200x38mm
Regular price
CHF 285.69
ex VAT
Regular price
Sale price
CHF 285.69
ex VAT
Equivalent to: 6222CM 222K 1222 222S 6222 3222 19A 110BC02
In stock
Price Break
10+
CHF 254.26
19+
CHF 239.98
29+
CHF 237.12
39+
CHF 234.27
49+
CHF 231.41
74+
CHF 228.55
99+
CHF 214.27
199+
CHF 211.41
249+
CHF 208.55
499+
CHF 205.70
999+
CHF 199.98
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6222CM 222K 1222 222S 6222 3222 19A 110BC02
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 200mm |
| B | 38mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 160 kN |
| C<sub>or</sub> | 117 kN |
| C<sub>u</sub> | 7.35 kN |
| f<sub>0</sub> | 14.3 kN |
| Grease | 3200 rpm |
| Oil | 3800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 121mm |
| D<sub>a</sub> Max. | 189mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 4.36 kg |
