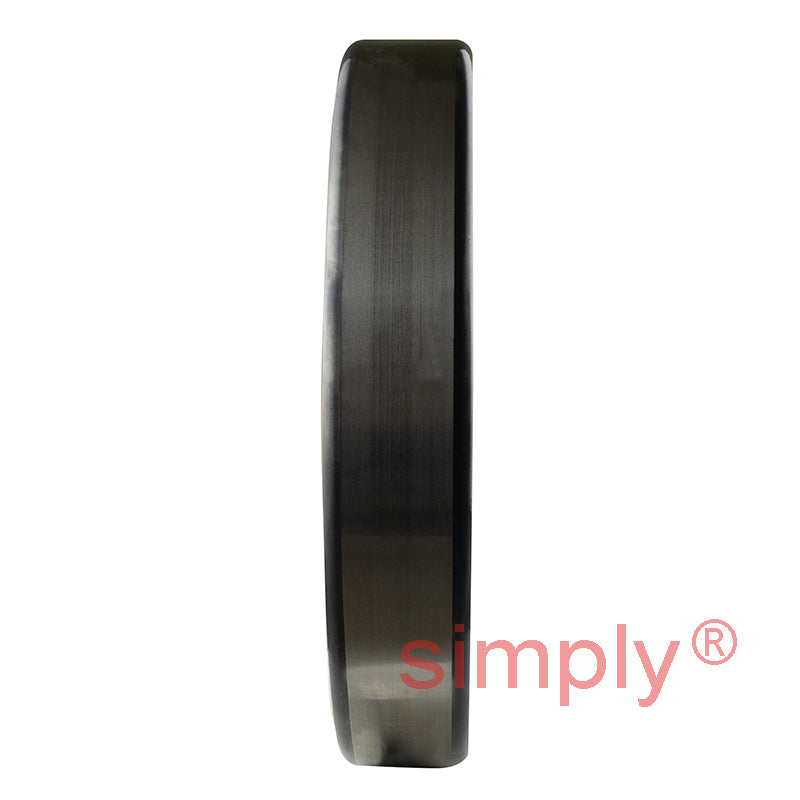

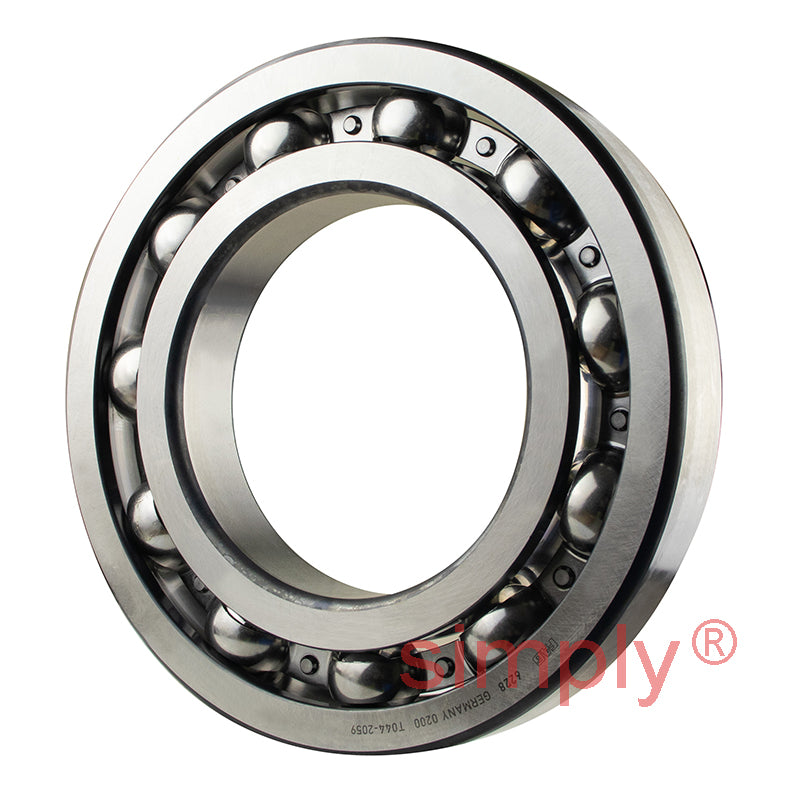

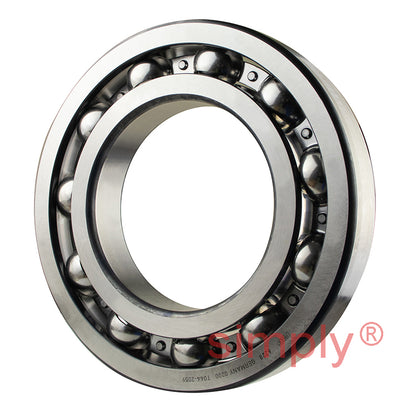

Major Brand 6228 Open Deep Groove Ball Bearing 140x250x42mm
Major Brand 6228 Open Deep Groove Ball Bearing 140x250x42mm
Regular price
CHF 366.00
ex VAT
Regular price
Sale price
CHF 366.00
ex VAT
In stock
Price Break
10+
CHF 291.11
19+
CHF 274.75
29+
CHF 271.48
39+
CHF 268.21
49+
CHF 264.94
74+
CHF 261.67
99+
CHF 245.31
199+
CHF 242.04
249+
CHF 238.77
499+
CHF 235.50
999+
CHF 228.96
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 250mm
- Width:
- 42mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 140mm |
|---|---|
| D | 250mm |
| B | 42mm |
| Dynamic load C | 165 kN |
| Static load Co | 150 kN |
| Fatigue load limit Pu | 4.55 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 3400 rpm |
| Mass | 7.45 kg |
| d1 | 176mm |
| D1 | 213mm |
| D2 | 213mm |
| r1r2 min | 3mm |
| da min | 154mm |
| Da max | 236mm |
| ra max | 2.5mm |
| Calc factor Kr | 0.025 |
| Calc factor | 15 |
