SKU: 63/22-NTN

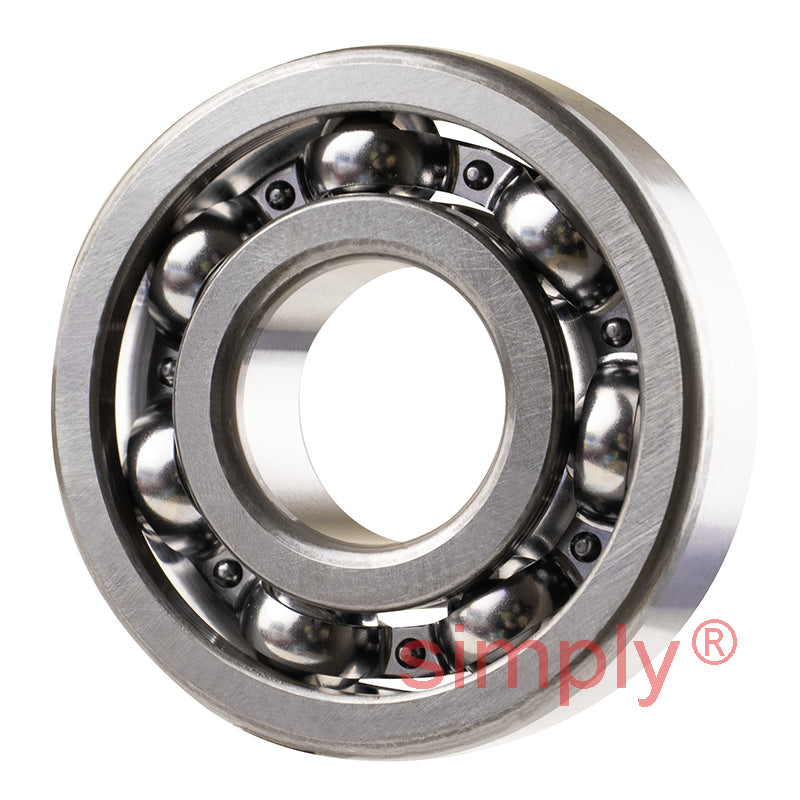

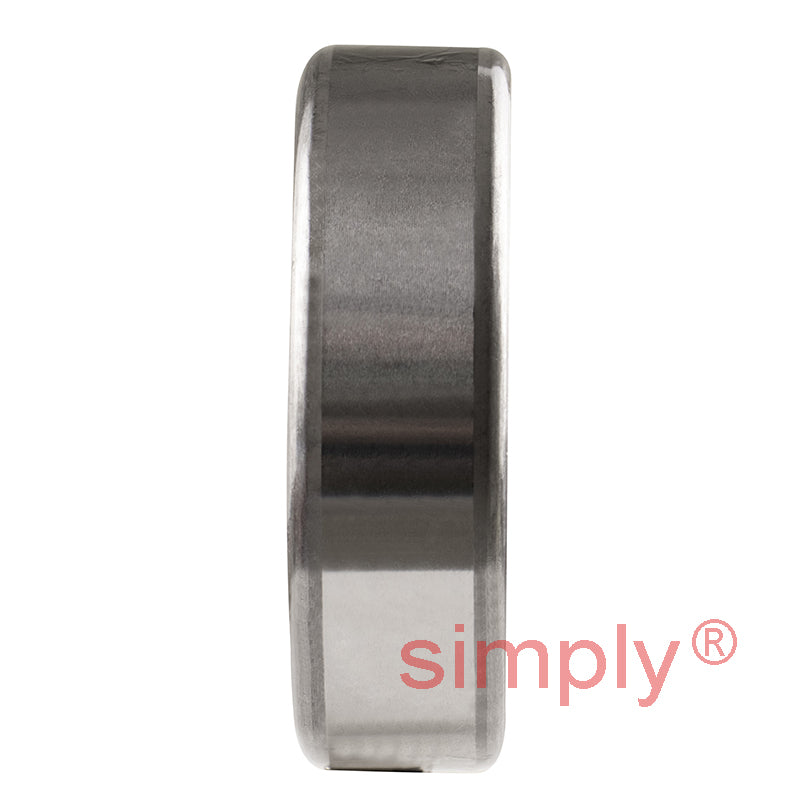

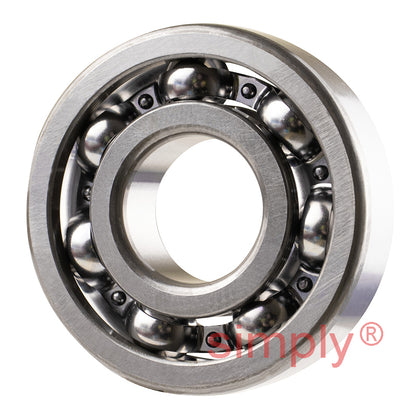

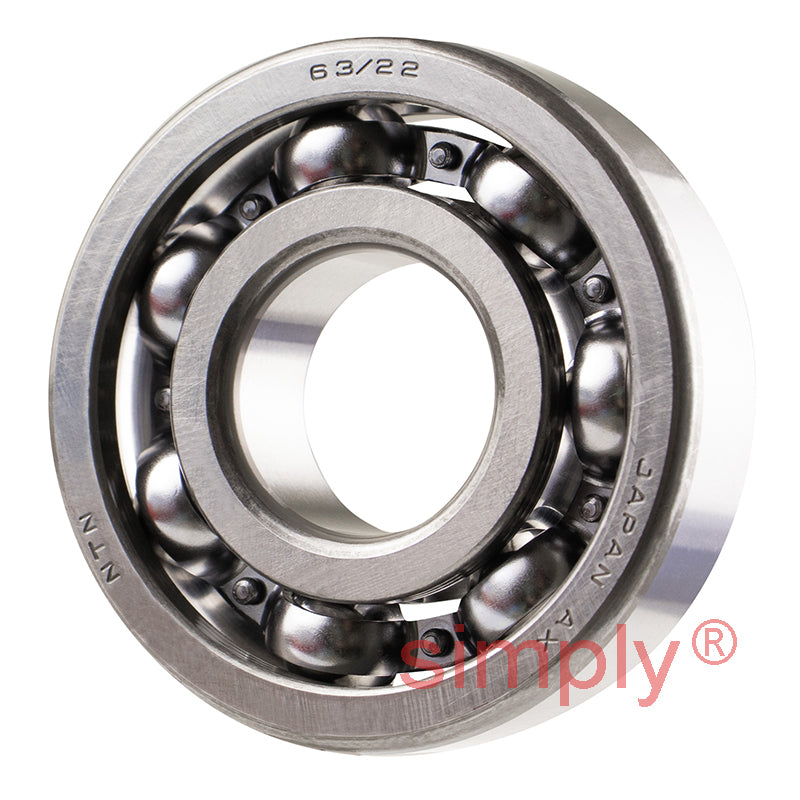

NTN 63/22 Open Type Deep Groove Ball Bearing 22x56x16mm
NTN 63/22 Open Type Deep Groove Ball Bearing 22x56x16mm
Regular price
CHF 49.00
ex VAT
Regular price
Sale price
CHF 49.00
ex VAT
Equivalent to: 63/22CM 5B22
In stock
Price Break
3+
CHF 38.55
5+
CHF 36.39
10+
CHF 35.96
25+
CHF 35.52
49+
CHF 35.09
74+
CHF 34.66
99+
CHF 32.49
199+
CHF 32.06
249+
CHF 31.62
499+
CHF 31.19
999+
CHF 30.32
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 63/22CM 5B22
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 56mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 22mm |
| D | 56mm |
| B | 16mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 20.4 kN |
| C<sub>or</sub> | 9.25 kN |
| C<sub>u</sub> | 0.725 kN |
| f<sub>0</sub> | 12.4 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 28.5mm |
| D<sub>a</sub> Max. | 49.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.176 kg |
