SKU: 63/28/C3-MB

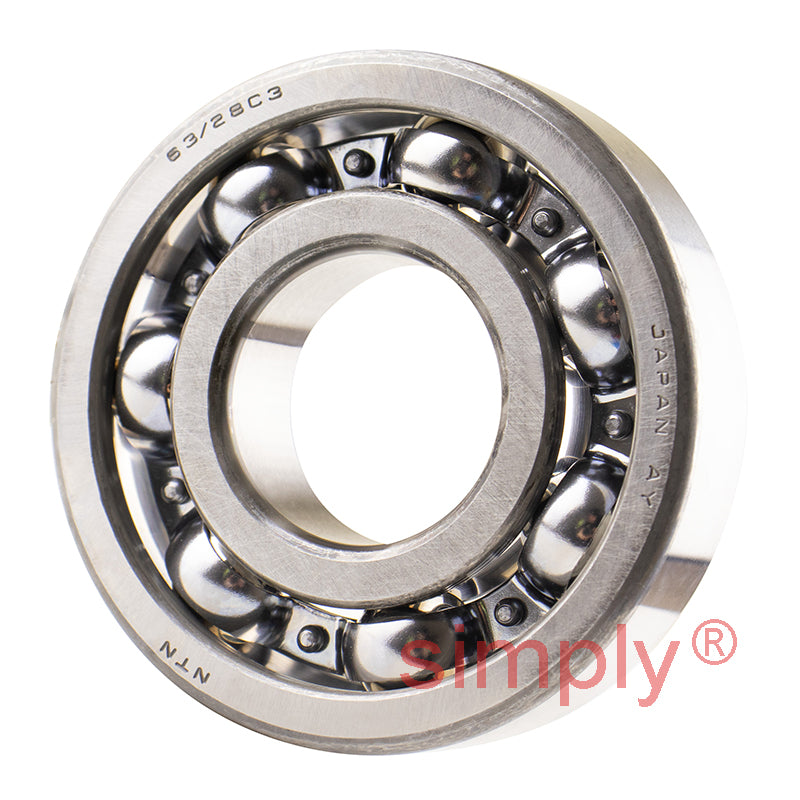

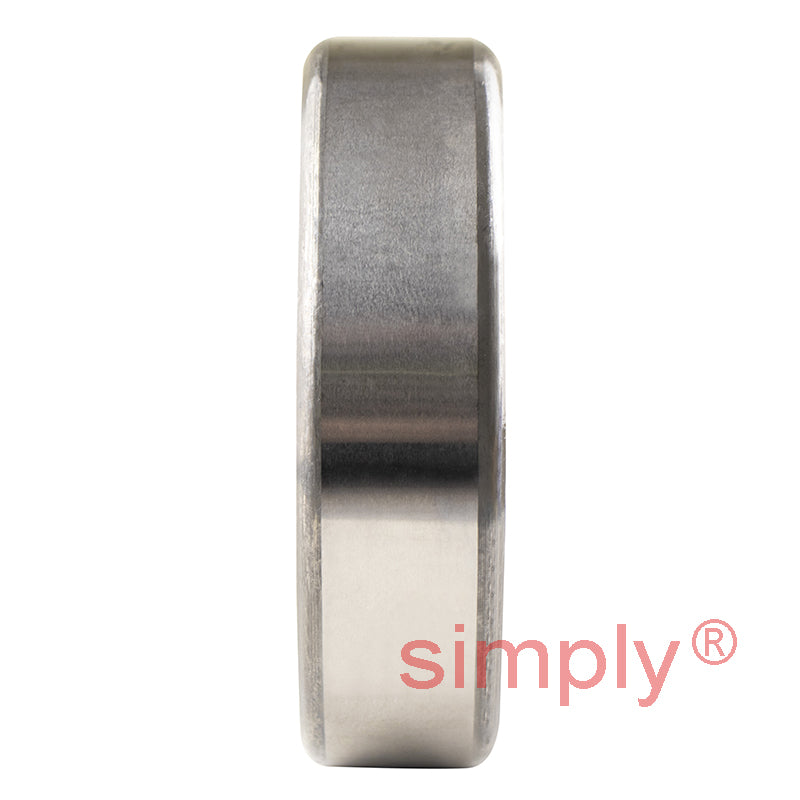

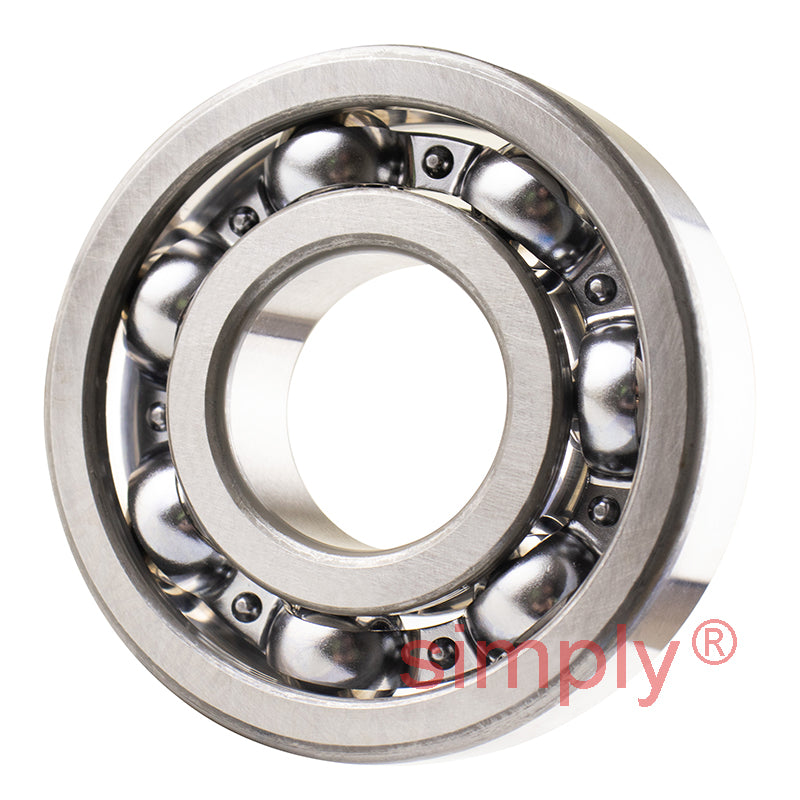

Major Brand 63/28C3 Open Deep Groove Ball Bearing 28x68x18mm
Major Brand 63/28C3 Open Deep Groove Ball Bearing 28x68x18mm
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
In stock
Price Break
10+
CHF 19.03
19+
CHF 17.96
29+
CHF 17.75
39+
CHF 17.53
49+
CHF 17.32
74+
CHF 17.11
99+
CHF 16.04
199+
CHF 15.82
249+
CHF 15.61
499+
CHF 15.40
999+
CHF 14.97
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 68mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 28mm |
|---|---|
| D | 68mm |
| B | 18mm |
| Dynamic load C | 25.1 kN |
| Static load Co | 13.7 kN |
| Fatigue load limit Pu | 0.585 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 14000 rpm |
| Mass | 0.29 kg |
| d1 | 41.7mm |
| D1 | 56mm |
| r1r2 min | 1.1mm |
| da min | 35mm |
| Da max | 61mm |
| ra max | 1mm |
| Calc factor Kr | 0.03 |
| Calc factor | 13 |
