SKU: 63/28-NTN

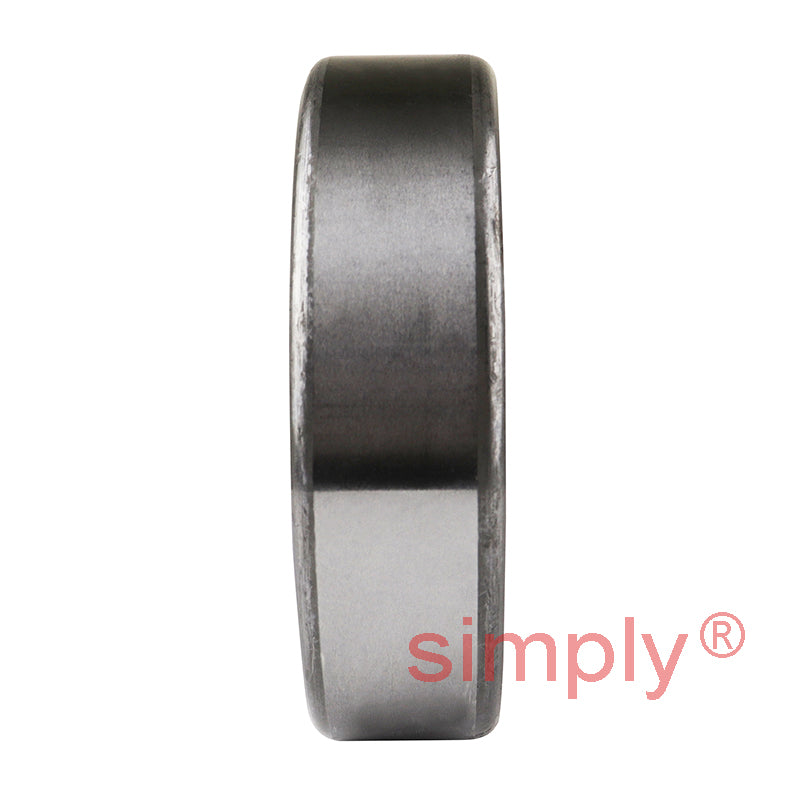

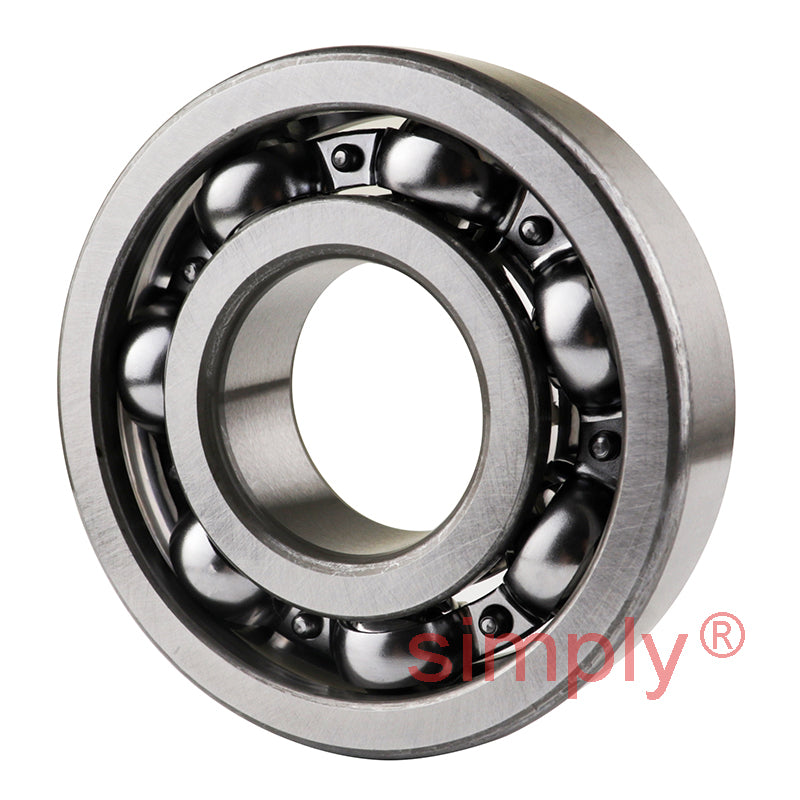

NTN 63/28 Open Type Deep Groove Ball Bearing 28x68x18mm
NTN 63/28 Open Type Deep Groove Ball Bearing 28x68x18mm
Regular price
CHF 38.00
ex VAT
Regular price
Sale price
CHF 38.00
ex VAT
Equivalent to: 63/28CM 6B28
In stock
Price Break
3+
CHF 30.14
5+
CHF 28.45
10+
CHF 28.11
25+
CHF 27.77
49+
CHF 27.43
74+
CHF 27.10
99+
CHF 25.40
199+
CHF 25.06
249+
CHF 24.73
499+
CHF 24.39
999+
CHF 23.71
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 63/28CM 6B28
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 68mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 28mm |
| D | 68mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 29.6 kN |
| C<sub>or</sub> | 14 kN |
| C<sub>u</sub> | 1.1 kN |
| f<sub>0</sub> | 12.4 kN |
| Grease | 11000 rpm |
| Oil | 13000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 34.5mm |
| D<sub>a</sub> Max. | 61.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.284 kg |
