SKU: 6300-2NSE-NACHI

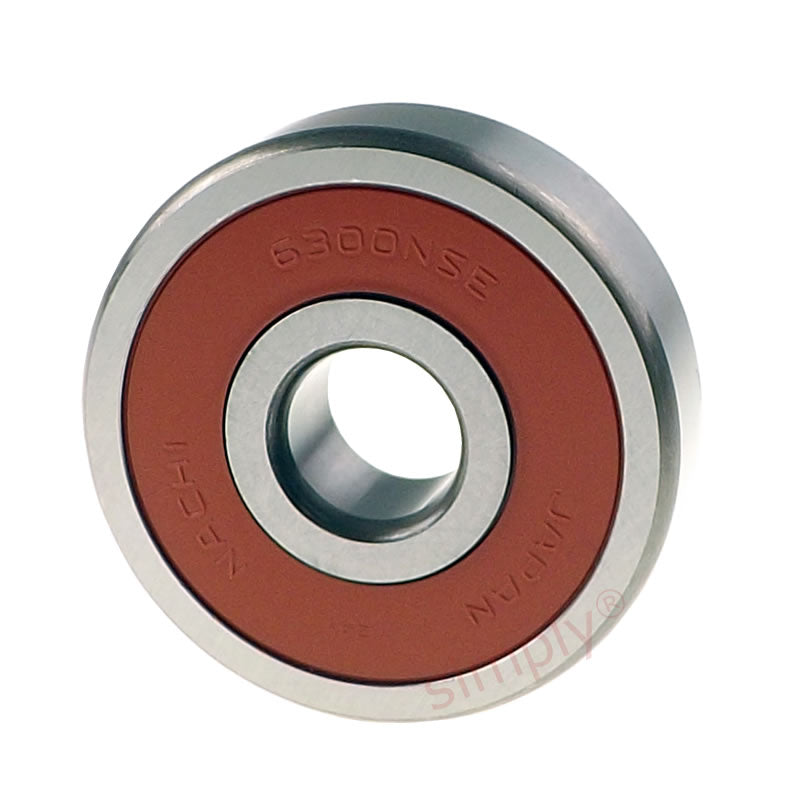

NACHI 63002NSE Contact Rubber Sealed Deep Groove Ball Bearing 10x35x11mm
NACHI 63002NSE Contact Rubber Sealed Deep Groove Ball Bearing 10x35x11mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
Equivalent to: 63002DU 63002RS 63002RSH 63002P 63002RSR 63002LU
In stock
Price Break
5+
CHF 5.55
9+
CHF 5.24
19+
CHF 5.18
29+
CHF 5.11
49+
CHF 5.05
74+
CHF 4.99
99+
CHF 4.68
199+
CHF 4.62
249+
CHF 4.55
499+
CHF 4.49
999+
CHF 4.37
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 63002DU 63002RS 63002RSH 63002P 63002RSR 63002LU
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 11mm |
| Min radius r | 0.6mm |
| Dynamic load | 8100 kN |
| Static load | 3450 kN |
| Max speed | 23000 rpm |
| da min | 15mm |
| Da max | 30mm |
| ra max | 0.6mm |
| Weight | 0.053 kg |
