SKU: 6302-2RS/C3-KOY

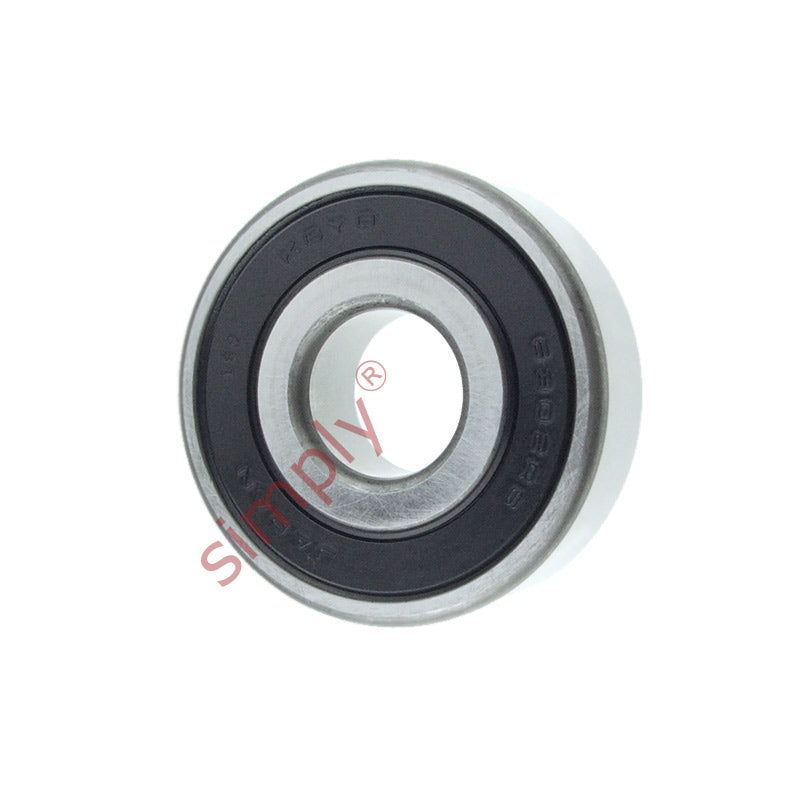

KOYO 63022RSC3 Rubber Sealed Deep Groove Ball Bearing 15x42x13mm
KOYO 63022RSC3 Rubber Sealed Deep Groove Ball Bearing 15x42x13mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
Equivalent to: 6302NSEC3 6302DUC3 6302RSC3 6302RSHC3 6302PC3 6302RSRC3 6302LUC3 63022NSEC3 6302DDUC3 63022RS1C3 63022RSHC3 6302PPC3 63022RSRC3 6302LLU
In stock
Price Break
5+
CHF 6.28
9+
CHF 5.93
19+
CHF 5.86
29+
CHF 5.79
49+
CHF 5.72
74+
CHF 5.65
99+
CHF 5.30
199+
CHF 5.22
249+
CHF 5.15
499+
CHF 5.08
999+
CHF 4.94
Share this product
Description
Description
|
KOYO Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6302NSEC3 6302DUC3 6302RSC3 6302RSHC3 6302PC3 6302RSRC3 6302LUC3 63022NSEC3 6302DDUC3 63022RS1C3 63022RSHC3 6302PPC3 63022RSRC3 6302LLU
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 11.4 kN |
| Static load | 5.45 kN |
| Max speed in oil | 20000 rpm |
| Max speed in grease | 12000 rpm |
