SKU: 6302-2Z-EU

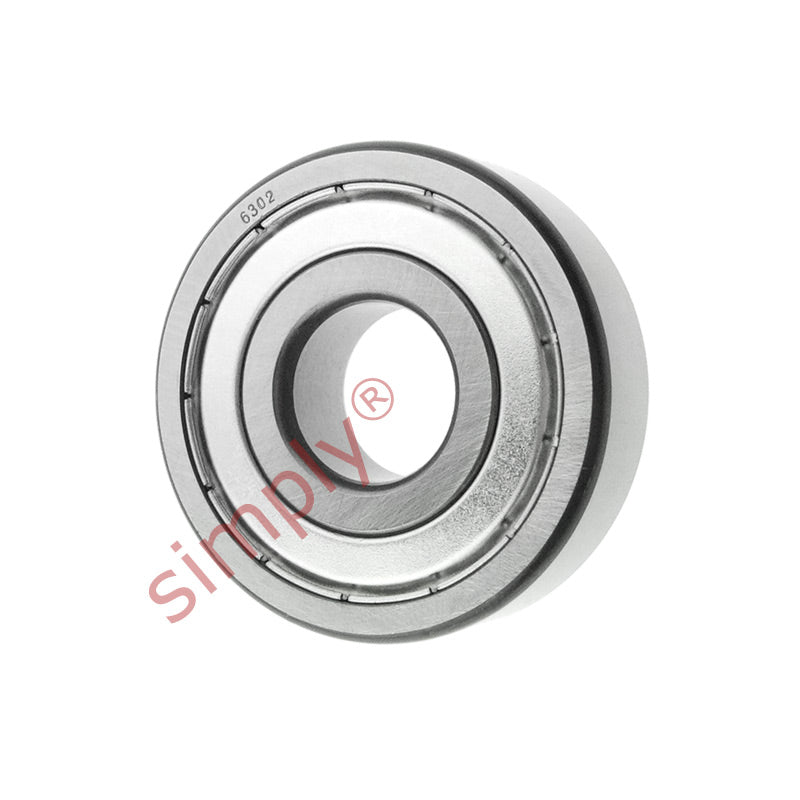

6302ZZ Budget Metal Shielded Deep Groove Ball Bearing 15x42x13mm
Equivalent to: 6302ZZE 6302ZZ 6302.2Z 6302KDD 6302DD 6302FF 63022ZR 6302ZZE 6302ZZ 63022ZR 63022RS2
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6302ZZE 6302ZZ 6302.2Z 6302KDD 6302DD 6302FF 63022ZR 6302ZZE 6302ZZ 63022ZR 63022RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 15mm |
|---|---|
| D | 42mm |
| B | 13mm |
| r min | 1mm |
| Dynamic load Cr | 11.4 kN |
| Static load Cor | 5.45 kN |
| Speed in grease | 17000 rpm |
| Speed in oil | 20000 rpm |
